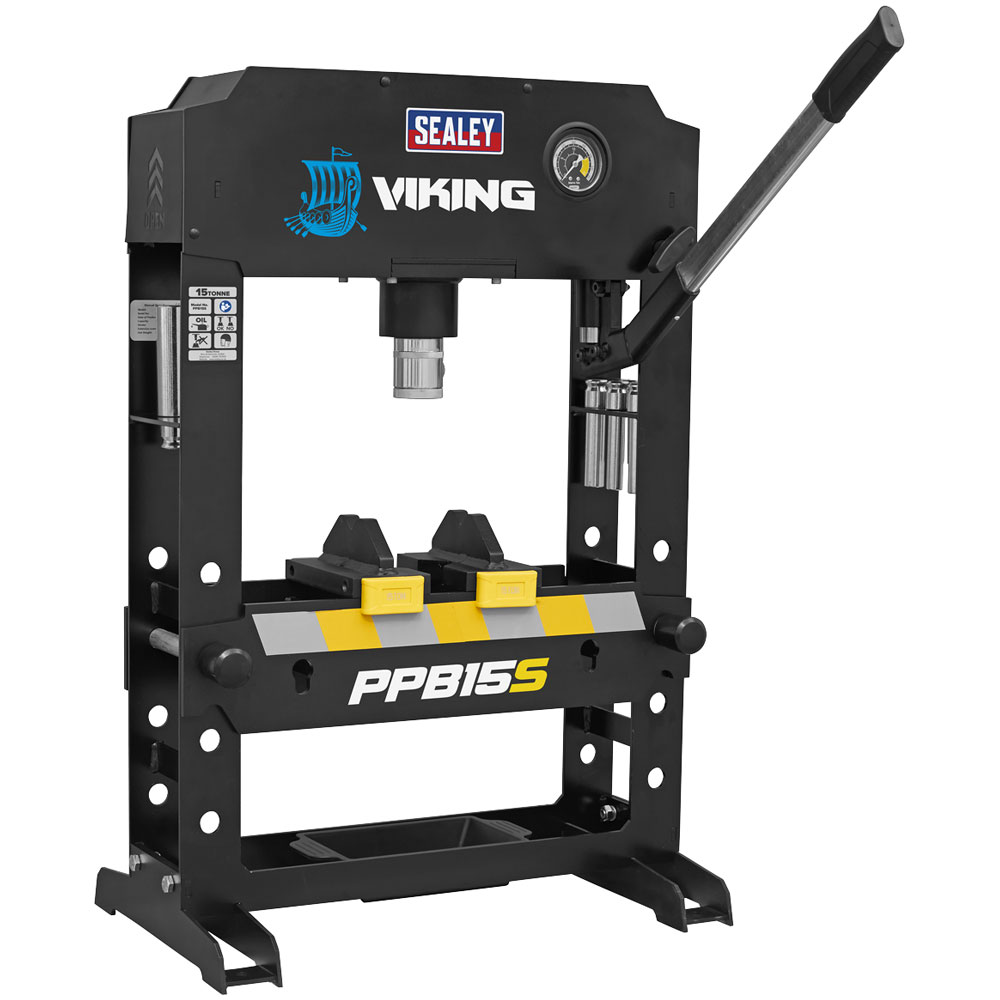

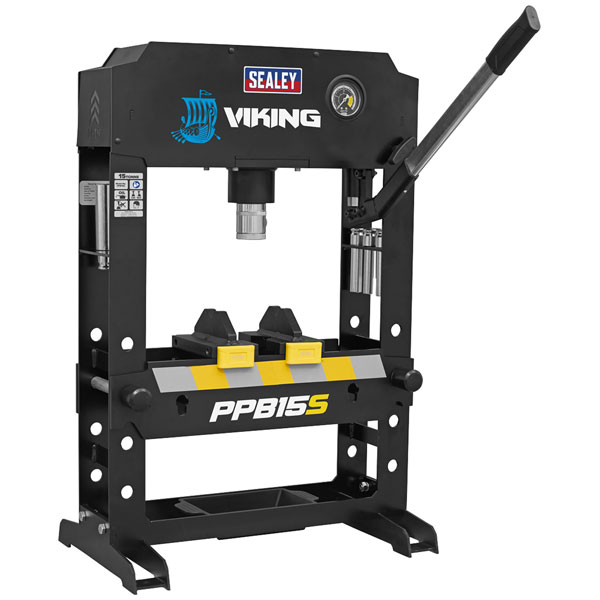

Sealey PPB15S Viking Bench Type Hydraulic Press 15 Tonne

Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.

• Table Aperture: 147mm.
• Working Table Width: 565mm.
• Ram Stroke: 170mm.
• Heavy-duty steel frame construction with handle operated hydraulic pump unit.
• Screw adjustable ram and adjustable work area with removable tray.
• Frame head fitted with ram pressure gauge.
• Storage for press pins included in frame.
• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• Model No. PPB15S

Type	Bench Type
Capacity	15tonne
Bench or Floor Mounting	Bench
Gauge Included	Yes
Lateral Ram Travel	n/a
Maximum Height - Ram to Table	347mm
Minimum Height - Ram to Table	55mm
Nett Weight	56.3kg
Operating Table Width	440mm
Overall Height	855mm
Ram Diameter	Ø79.2mm
Ram Stroke	170mm
Screw Extension	75mm
Table Aperture	147mm
Working Table Depth	163mm
Working Table Width	565mm
