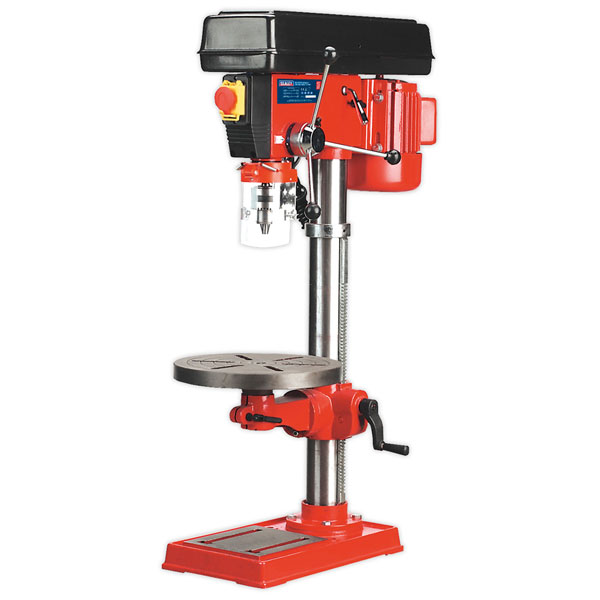

Sealey GDM120B Pillar Drill Bench 16-Speed 550W/230V

Sealey
Order Code:

89-1776

Brand: Sealey MPN: GDM120B EAN-13: 5024209365642
Qty Was Unit Price (Ex VAT)
1+ £283.82 £272.95
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched in 2 working days

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Optional Mortise attachment is available.

Model NoGDM120B
Base Size:420 x 250mm
Collar Diameter:60mm
Column Diameter:70mm
Drilling Capacity (Chuck Size):16mm
Maximum Distance Spindle to Base:600mm
Maximum Distance Spindle to Table:410mm
Motor Power (Start):350W(550W)
Nett Weight:47kg
Number of Speeds:16
Optional Accessories:GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height:960mm
Speed Range:210-3340rpm
Spindle Centre to Column:165mm
Spindle Nose Taper:MT2
Spindle Travel:80mm
Supply:230V
Swing:330mm
Working Base Surface Size:210 x 190mm
Working Table Surface Size:Ø310mm

Voltage 230V
Type Magnetic Drill
Power 550W
Chuck Size 16mm
Speed Settings 16
Base Size 420 x 250mm
Collar Diameter 60mm
Column Diameter 70mm
Drilling Capacity (Chuck Size) 16mm
Lifetime Warranty No
Maximum Distance Spindle to Base 600mm
Maximum Distance Spindle to Table 410mm
Motor Power (Start) 350W(550W)
Nett Weight 47kg
Number of Speeds 16
Optional Accessories GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height 960mm
Speed Range 210-3340rpm
Spindle Centre to Column 165mm
Spindle Nose Taper MT2
Spindle Travel 80mm
Supply 230V
Swing 330mm
Working Base Surface Size 210 x 190mm
Working Table Surface Size Ø310mm
