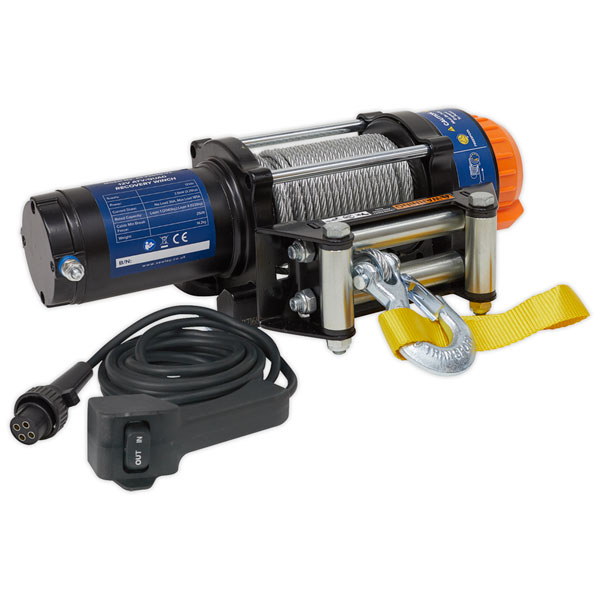

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability. High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power. All-metal chassis for long-life and low maintenance. Motor can easily be rotated 90° to meet various wiring and mounting requirements. Patented unique automatic spring brake, reliable in full load operation. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
- Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.
- High power 2.5kW(3.25hp) 12V DC permanent magnet type motor gives first class pulling power.
- All-metal chassis for long-life and low maintenance.
- Motor can easily be rotated 90° to meet various wiring and mounting requirements.
- Patented unique automatic spring brake, reliable in full load operation.
- High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
- Cable Length: 17m.
- Line Pull*: 2040kg(4500lb).
- IP67 rated.
- Gear Ratio: 180:1.
- Model No. ATV2040
*Performance quoted at first layer of cable on drum
| Type |
Winch |
| Capacity |
2040kg |
| Consumable Parts |
ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040 |
| Current Draw |
No-Load - 30A, Maximum Load - 185A |
| Gear Ratio |
180:1 |
| Line Pull* |
2040kg(4500lb) |
| Line Speed* |
No Load - 4.5m/min, Maximum Load - 1.3m/min |
| Motor Power |
2.5kW(3.25hp) |
| Nett Weight |
13.9kg |
| Note |
*Performance quoted at first layer of cable on drum |
| Rated Capacity |
Layer 1: 2043kg, Layer 4: 1234kg |
| Supply |
12V |
| Wire Rope Diameter |
5.4mm |
| Wire Rope Length |
17m |
