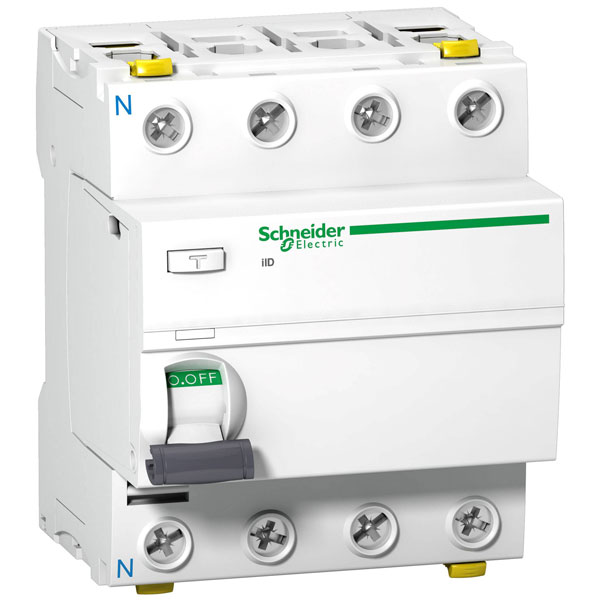

Schneider Electric A9Z24463 RCCB FI-SWITCH 4P Type A 63A 415V

The Schneider Electric A9Z24463 RCCB is a residual current circuit breaker that provides fault-current protection with a rating of 63 A and a sensitivity of 0.3 A at 415 V. It is commonly used to safeguard electrical installations against electrical shocks and fire hazards caused by earth faults. Typical applications include residential and commercial buildings where electrical safety is crucial.

Type	RCCB
Current Rating	63A
Voltage Rating - AC	415V AC
Actuator Type	Toggle
Tripping Characteristics	A Curve
Additional equipment possible	true
Ambient temperature during operating	-25 - 60°C
Built-in depth	44mm
Connectable conductor cross section multi-wired	1 - 25mm²
Connectable conductor cross section solid-core	1 - 35mm²
Current Ratng	63A
Degree of protection (IP)	IP20
Depth	73mm
Differential current rating	0.3A
Dim	(W x H x D) 72 x 91 x 73 mm
Explosion-proof	false
Factory colour	White
Frequency	50/60 Hz
Height	91mm
Leakage current type	A
Mounting method	DIN rail
Number of pins	4
Number of Poles	4
Pollution degree	3
Power loss	3.5W
RAL-number (similar)	9003
Rated current	63A
Rated fault current	0.3A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	500V
Rated voltage	400V
Selective protection	false
Short-circuit breaking capacity (Icw)	N/A
Short-time delayed tripping	false
Surge current capacity	0.25kA
Voltage Rating	415V
Voltage type	AC
Weight	0
Width	72mm
Width in number of modular spacings	4
With interlocking device	true
