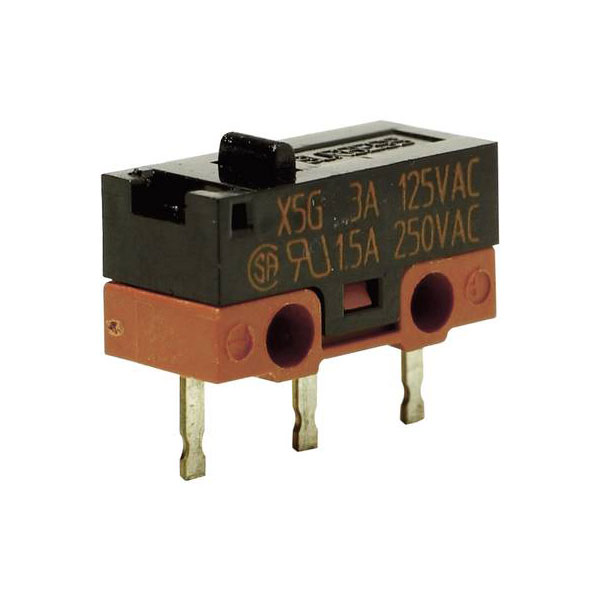

Saia X5G303K1ANJ1 Microswitch 250V 1.5A On/(On) IP40 UL/CSA 1piece

Image Representative of Range

Saia X5G303K1ANJ1 Microswitch 250V 1.5A On/(On) IP40 UL/CSA 1piece

Saia
Order Code:

10-5160

Brand: Saia MPN: X5G303K1ANJ1 EAN-13: 2050000382413
Qty Unit Price (Ex VAT)
2+ £2.29
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
96 in stock, despatched in 4 working days

The Saia X5G303K1ANJ1 microswitch operates at 250 V AC and 1.5 A, featuring a momentary action with a configuration of 1 x On/(On) and an IP40 rating. Its compact design of 13x6.5x6mm makes it suitable for PCB connections or lever applications in various electronic components like miniature switches. Typical applications include usage in pressure switches and buttons within electronic circuits.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 1.5A
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 6 x 13 x 6.5 mm
Height 6.5mm
IP Rating IP40
Length 6mm
Max. temperature +75°C
Min. temperature 0°C
Misc Attribute 2 1 changer
Switch position 1 x On/(On)
Switching Capacity 1.5 A/250 V/AC / 3 A/125V AC
Switching Voltage 250V AC
Temperature Range 0 - +75°C
Width 13mm
