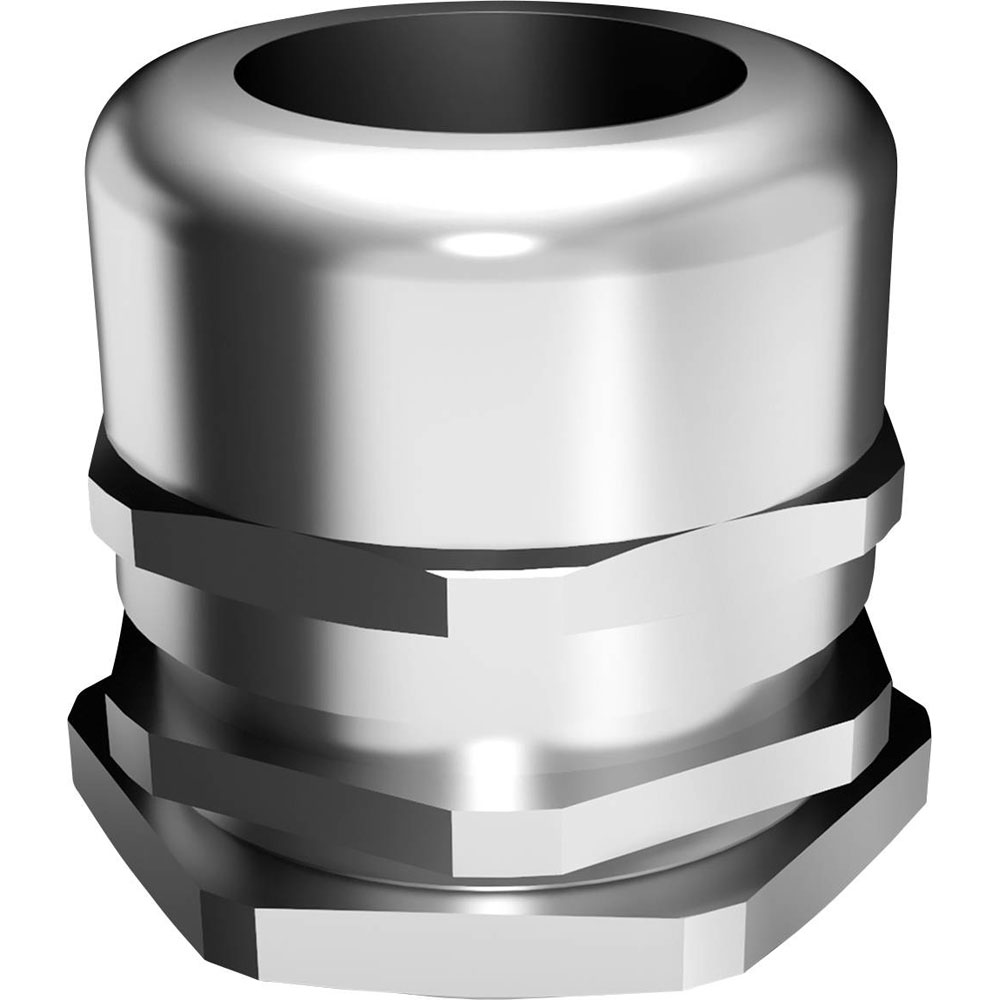

Rittal 2411.841 Cable Gland M32 Brass 1pc Sturdy and Durable

The Rittal 2411.841 cable gland is made from brass and features an M32 size for secure cable management. Its robust construction ensures effective strain relief and protection against environmental factors. This component is typically used in electrical installations for securing cables in enclosures or machinery.

Thread Size	M32
Colour	Brass
Material	Brass
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	15mm
EMC-version	No
Explosion-tested version	No
External thread	M32
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	36mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Brass
Maximum Temperature	+100°C
Min. temperature	-40°C
Model Type	Other
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	32
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Surface protection	Nickel-plated
Terminal Ø (max.)	21mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Wrench width	17mm
