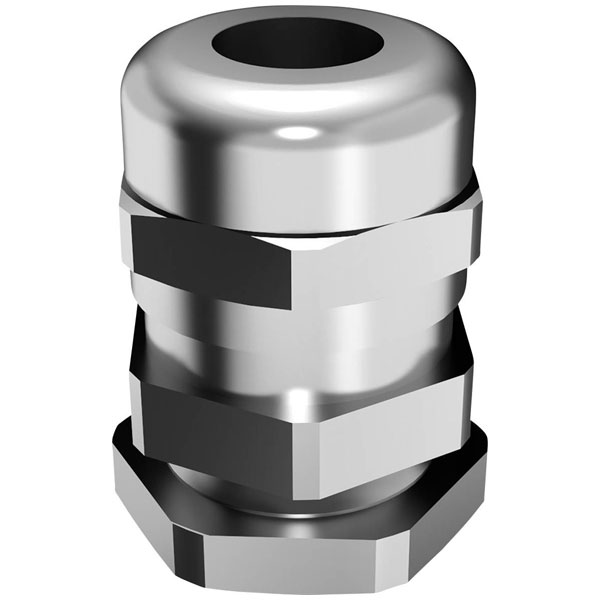

Rittal 2411.801 Cable Gland M12 Brass 1pc

The Rittal 2411.801 cable gland is made of durable brass and features an M12 thread. This single cable gland is designed to provide a secure seal and strain relief for cables in electrical enclosures. It is typically used in industrial and telecommunications applications to ensure stable and protected cable connections.

Thread Size	M12
Colour	Brass
Material	Brass
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	3mm
EMC-version	No
Explosion-tested version	No
External thread	M12
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	22mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Brass
Maximum Temperature	+100°C
Min. temperature	-40°C
Model Type	Other
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	12
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Surface protection	Nickel-plated
Terminal Ø (max.)	6.5mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Wrench width	17mm
