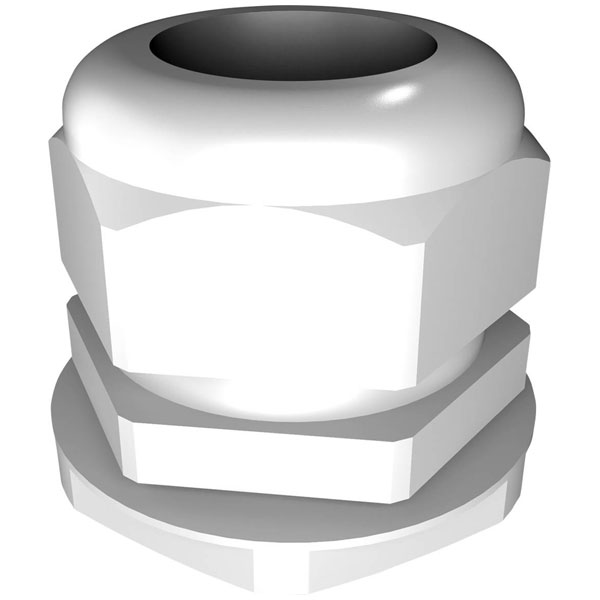

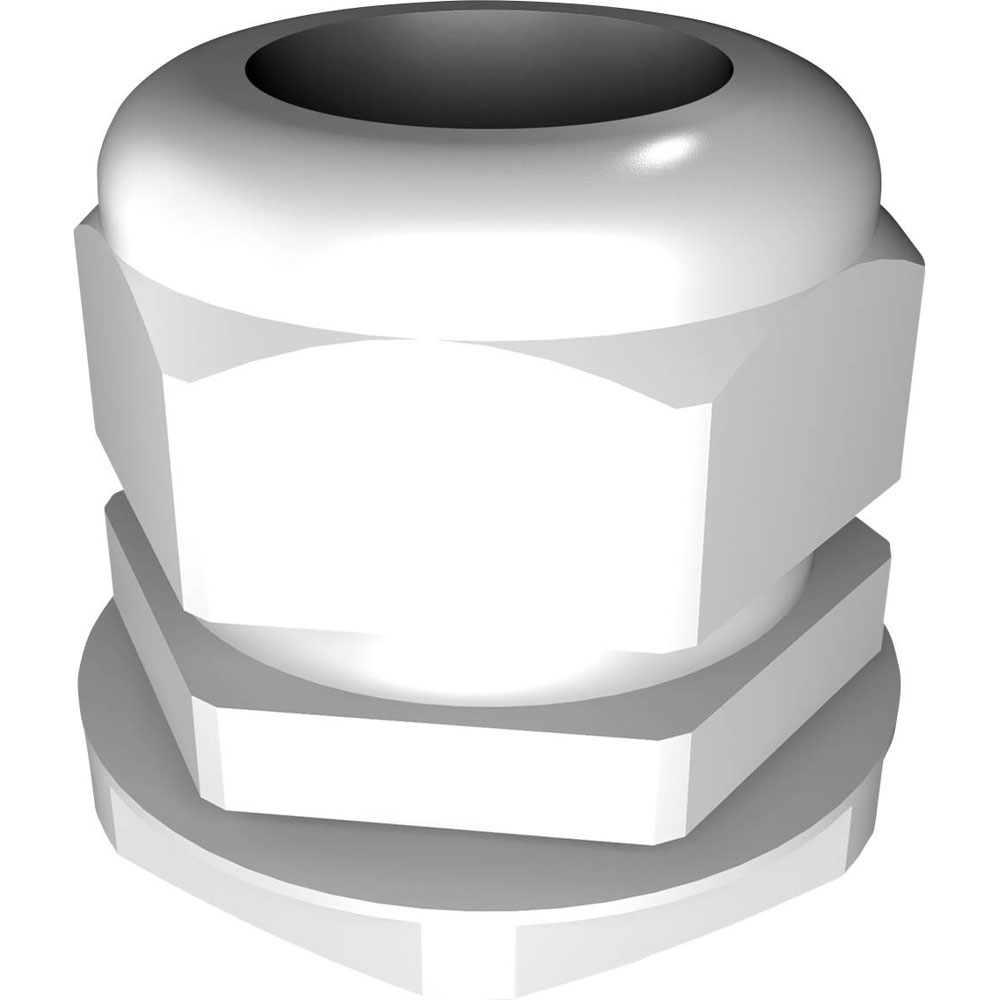

Rittal 2411.641 Cable Gland M32 Polyamide Grey-White RAL 7035 1pc

The Rittal 2411.641 cable gland, made of polyamide, is designed for M32 threads and comes in a grey-white colour (RAL 7035). Its robust construction ensures durability and reliable cable management. This product is typically used in electrical enclosures to secure and protect cables.

Thread Size	M32
Colour	Grey - white
Material	Polyamide
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	15mm
EMC-version	No
Explosion-tested version	No
External thread	M32
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	42mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Other
Maximum Temperature	+100°C
Min. temperature	-30°C
Model Type	Straight
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	32
RAL Number	7035
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Terminal Ø (max.)	21mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Working temperature	-30°C - 100°C
Wrench width	17mm
