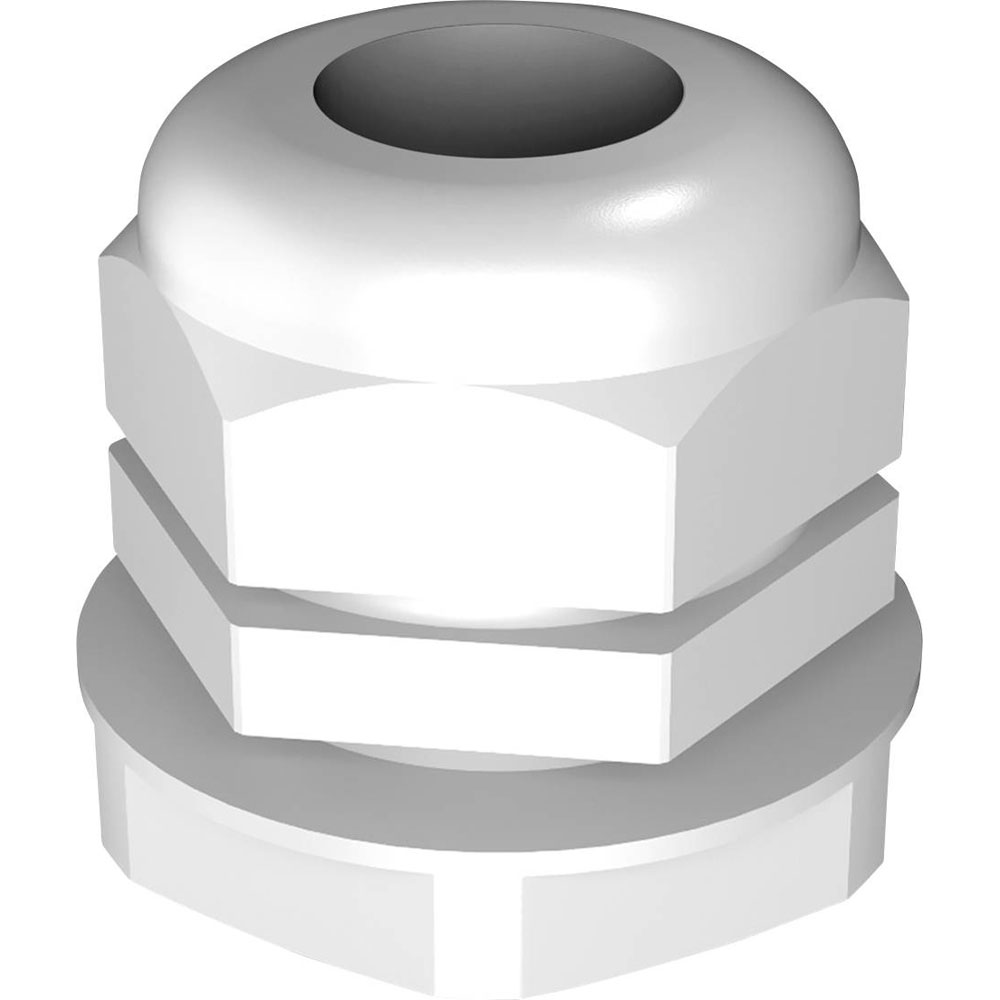

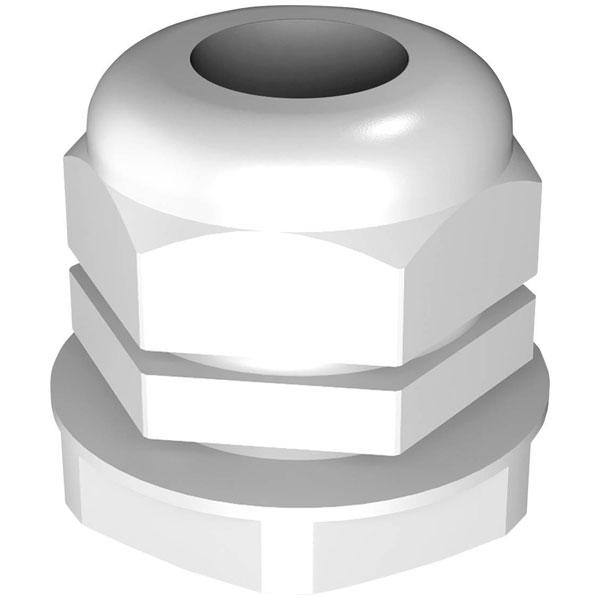

Rittal 2411.621 Cable Gland M20 Polyamide Grey-White RAL 7035

The Rittal cable gland 2411.621 is made of polyamide in a grey-white (RAL 7035) colour and comes in an M20 size. It is typically used for sealing and securing cables as they pass through enclosures or panels. Ideal for electrical and industrial applications, it ensures protection against dust and moisture.

Thread Size	M20
Colour	Grey - white
Material	Polyamide
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	6mm
EMC-version	No
Explosion-tested version	No
External thread	M20
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	28mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Other
Maximum Temperature	+100°C
Min. temperature	-30°C
Model Type	Straight
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	20
RAL Number	7035
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Terminal Ø (max.)	12mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Working temperature	-30°C - 100°C
Wrench width	17mm
