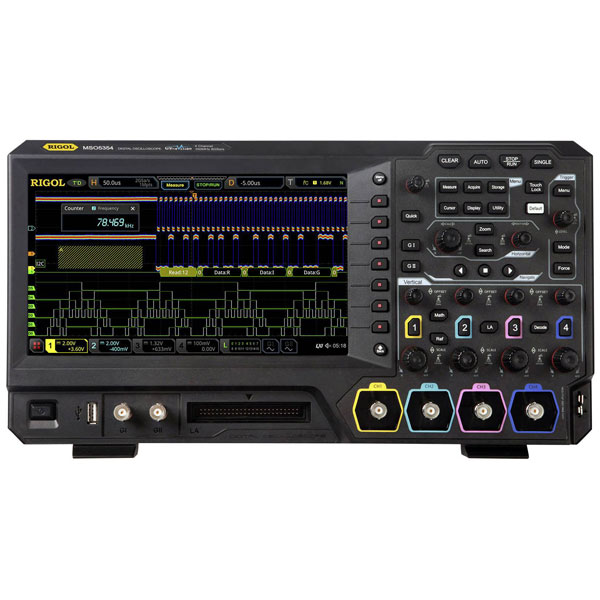

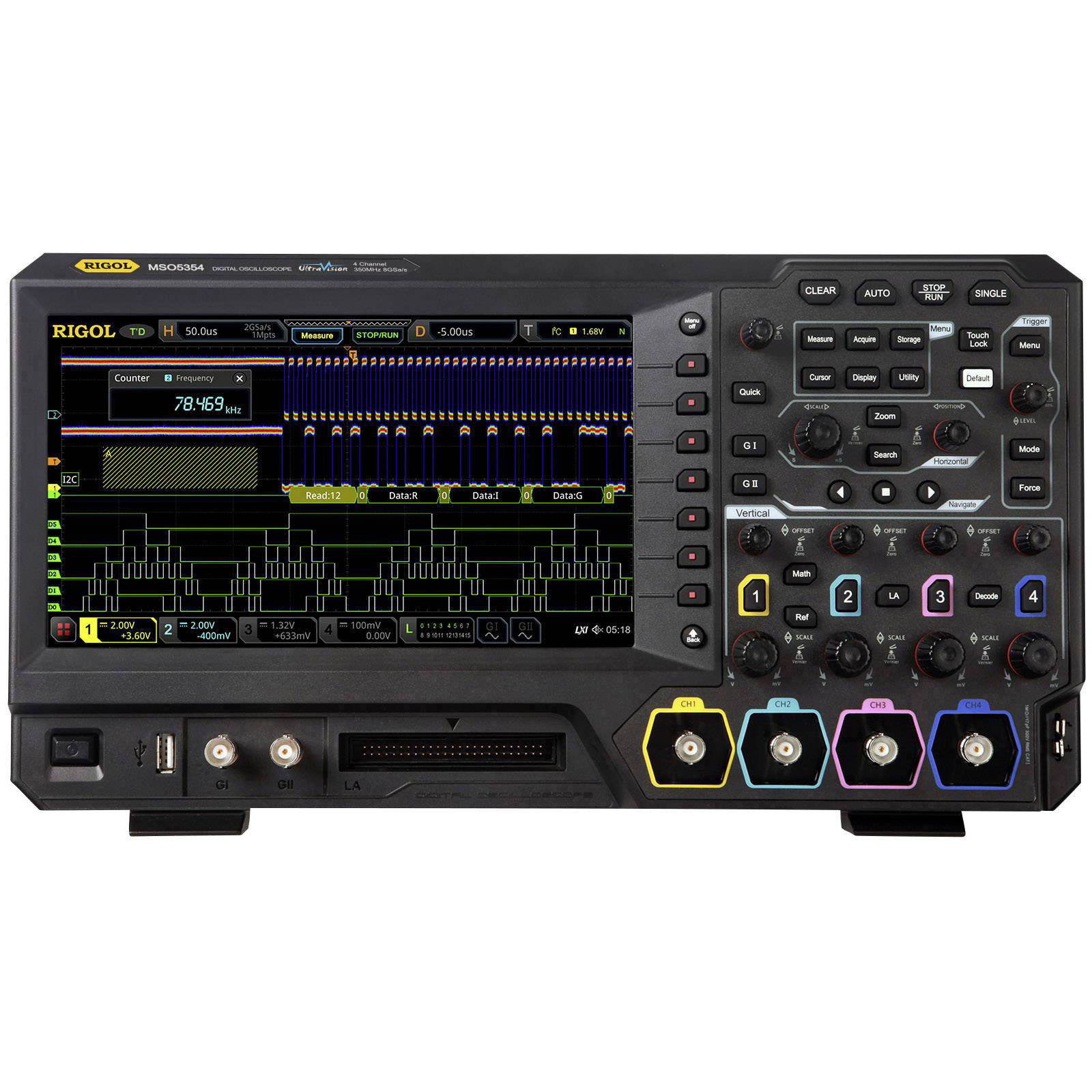

Rigol MSO5204 Series Digital Oscilloscope, 200MHz, 8GS/s, 9" Display

Rigol
Extended range
Order Code:

10-4796

Brand: Rigol MPN: MSO5204 EAN-13: 4053199916788
Qty Unit Price (Ex VAT)
1+ £2051.15
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 26/05/2025

The Rigol MSO5204 is a digital storage oscilloscope featuring a 200 MHz bandwidth and a sampling rate of 8 GS/s. Designed for precise electronic measurements, this oscilloscope supports complex signal analysis with 100 MP storage and 8-bit resolution. Ideal for professional laboratories, the MSO5204 is used in diagnosing and troubleshooting electrical circuits.
Bandwidth 200MHz
Type Digital
Calibrated to Manufacturer's standards (no certificate)
Channel memory depth 100Mpixel
Channel sample rate 8GS/s
Dim (L x W x H) 130 x 367 x 200 mm
Display 1024 x 600
Displays LCD
Height 200mm
Input coupling AC or DC
Input Impedance 1 MΩ ±1 %
Length 130mm
Misc Attribute MSO5204
No. of Analogue Inputs 4
Power supply (details) 100 V - 240V
Reading category CAT I
Resolution 8Bit
Screen Size 9 Zoll (22,86cm)
Vertical deflection 1 mV/div - 10 V/div
Weight 3.5kg
Width 367mm
