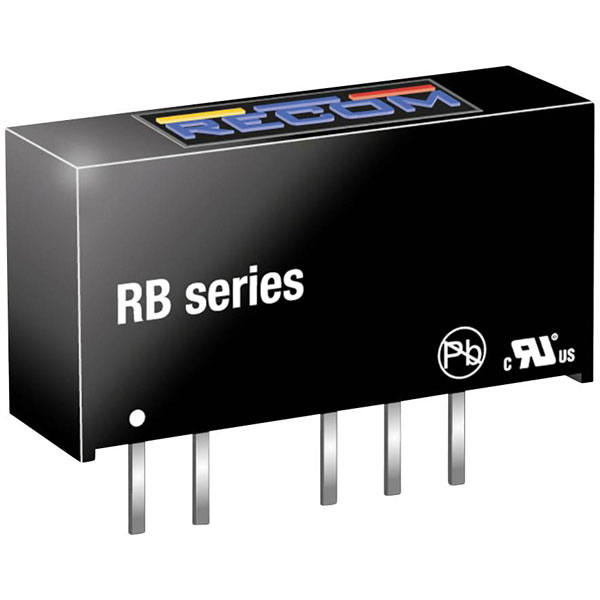

RECOM RB-0512D/P DC/DC converter 42 mA 1 W

The RECOM RB-0512D/P DC/DC converter stands out with its 1W output and a 42 mA current rating, making it perfect for a variety of applications including industrial automation, telecommunications, and medical devices. With a wide input voltage range and outstanding thermal performance, this converter ensures steady power delivery while maintaining compact dimensions of just 1.0” x 1.0” x 0.4”. Its built-in protections against over-voltage and over-temperature guarantee optimal performance and longevity

Type	Converter
Dim	(L x W x H) 19.6 x 6 x 10.2 mm
Enclosure	SIP 7
Height	10.2mm
Input voltage (max.)	5.5
Insulation voltage	1000V
Length	19.6mm
Max. output current	42mA
Min. input voltage	4.5V
Misc Attribute	RB-0512D/P
No. of outputs	2
Output current (max.) - rounded	42mA
Output voltage (max.)	12V
Output voltage (min.)	12V
Power	1W
RoHS-compliant	Yes
Width	6mm
