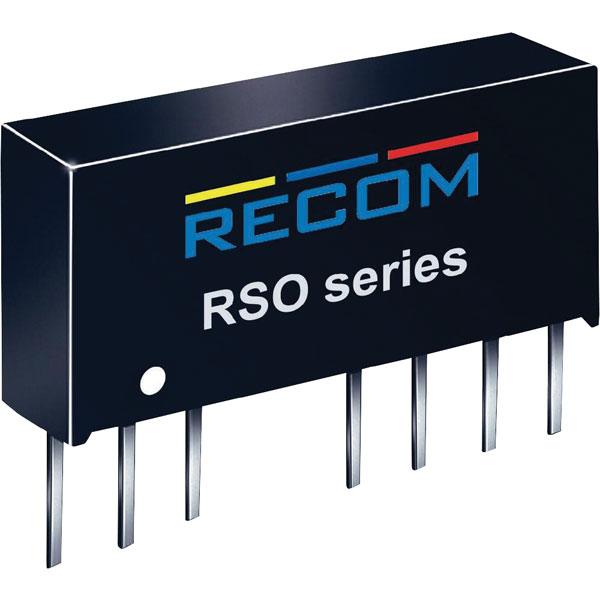

Recom International RSO-2415DZ/H3 DC/DC Converter 24V In 15V/15V Out

The Recom RSO-2415DZ/H3 is a Dual Output 1W DC/DC Converter from the RSO Series. This isolated high-power-density converter has an industrial temperature range of -40°C to +85°C and extra features like On-Off control. These are just two of the characteristics of this converter, making it ideal for highly sophisticated industrial designs.

The RSO-2415Z/H3 is supplied in a SIP8 package supplied with a high isolation of 3kVDC (suffix /H3) which is ideal for medical applications. This version offers a 4:1 input voltage range.

• 4:1 Voltage range
• Input voltage: 24V DC
• Output voltage: Dual 15V DC
• Output power: 1W
• SIP 8 Package
• Material: UL94V-0
• Operating Temperature from -40°C to +85°C
• Weight: 4.7g
• Efficiency: 73-75%
• Dimensions: 21.8(L) x 9.2(W)mm
• 3kVDC Isolation
• Type: DC-DC Converter RSO-D Series
• Manufacturer's part: RSO-2415DZ/H3
