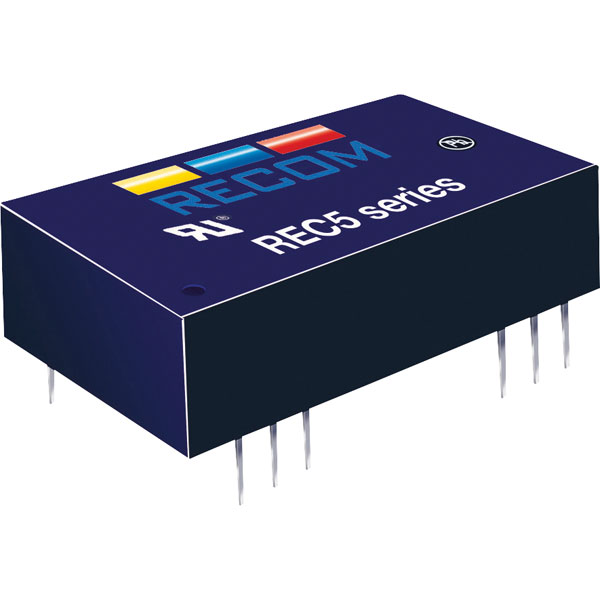

Recom 10005060 REC5-2412SRW/H2/A 5W DC/DC Converter 24V In 12V Out

This Recom REC5-2412SRW/H2/A is a 5W Single Output DC/DC Converter that has a standard isolation of 2kV DC(= '/H2'), making it suitable for medical applications and other high end sophisticated industrial applications.

This Recom REC5-2412SRW/H2/A is supplied in DIP-24 non-conductive plastic with an industry standard pinout (= option '/A'), so Remote On/Off control is possible.

The converter can deliver 140% rated power for short periods of time to cope with applications with large capacitive loads or high start up currents.

• Grid pitch: 2.54mm
• Input voltage: 18 - 36V DC
• Insulation voltage: 2000V DC
• Output current: 556mA
• Output voltage: 12V DC
• Power: 5W
• Specification: DIP24
• Efficiency up to 79-81%
• Operating Temperature from -40°C to +85°C
• Dimensions: 32(L) x 20.3(W)
• Type: DC to DC Converter REC5 Series
• Manufacturer's part: REC5-2412SRW/H2/A
