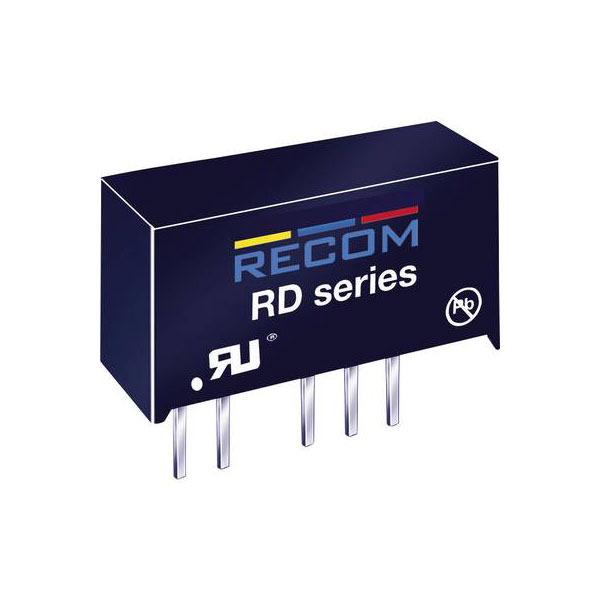

Recom 10003661 RD-0515D/P DC/DC Converter 5V In 15V/15V Out

The Recom RD-0515D/P is a Dual Output 2W DC/DC Converter from the RD Series. This SIP 7 converter has been specifically designed for applications where dual power rails need to be created from a single rail supply and a low cost solution is required.

With efficiencies up to 85%, the full output power is available over the operating temperature range -40°C to +85°C and the converter can be used in ambient temperatures of up to +100°C with some derating. This converter is supplied with 1kVDC Isolation and continuous short circuit protection.

• Input voltage: 5V DC
• Output voltage: Dual 15V DC
• Output power: 2W
• SIP 7 Package
• Material: UL94V-0
• Operating Temperature from -40°C to +85°C
• Weight: 2.8g
• Efficiency: 82-86%
• Dimensions: 19.65(L) x 7.05(W)mm
• Continuous Short Circuit Protection
• 1kVDC Isolation
• Type: DC-DC Converter RD Series
• Manufacturer's part: RD-0515D/P
