Recom 10000590 RO-0509S 1W DC/DC Converter 5V In 9V Out

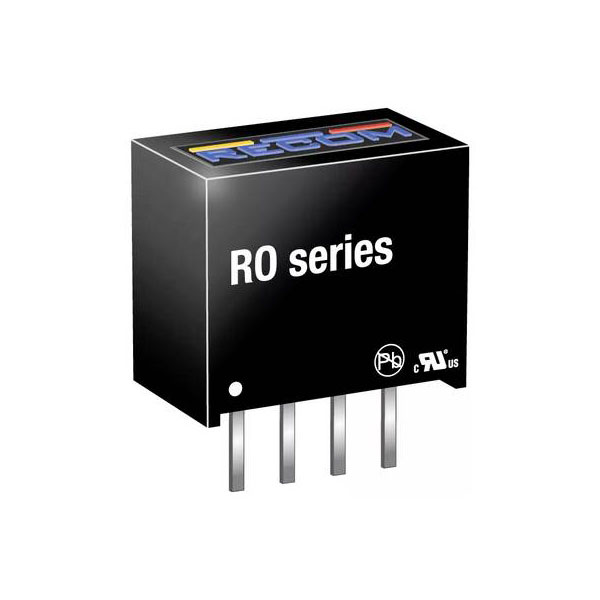

Image Representative of Range

Recom 10000590 RO-0509S 1W DC/DC Converter 5V In 9V Out

Recom
Order Code:

49-7116

Brand: Recom MPN: RO-0509S EAN-13: 2050001795458
Qty Was Unit Price (Ex VAT)
1+ £5.41 £4.36
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
46 available to back orderBack-order availability date - 10/01/2026

A Recom unregulated DC/DC converter from the RO series. This single output converter is supplied in the standard SIP4 package style. The converter has been designed to offer exceptionally high efficiency at low loads, an extended operating temperature range and low deviation (10% to 100% load). It is ideal for use in applications with a restricted energy budget, and industrial applications where a high efficiency level is required.


  • Accuracy: 1%
  • Grid pitch: 2.54mm
  • Insulation voltage: 1000V DC
  • Product Specifications: Ripple: (20 MHz bandwidth) 100 mVpp
  • Output current: 111mA
  • Input voltage: 5V
  • Output voltage: 9V
  • Specification: SIP4
  • Efficiency: 80%
  • Operating Temperature from -40°C to +85°C
  • Dimensions: 11.5(L) x 6.0(W)mm
  • Type: DC to DC Converter RO Series
  • Manufacturer's part: RO-0509S
Output Voltage 9V
Input Voltage Range 5V
Power Rating 1W
Output Current 111mA
Number of Outputs 1
Mounting Style SIP-4
Temperature Range -40 to +85°C
