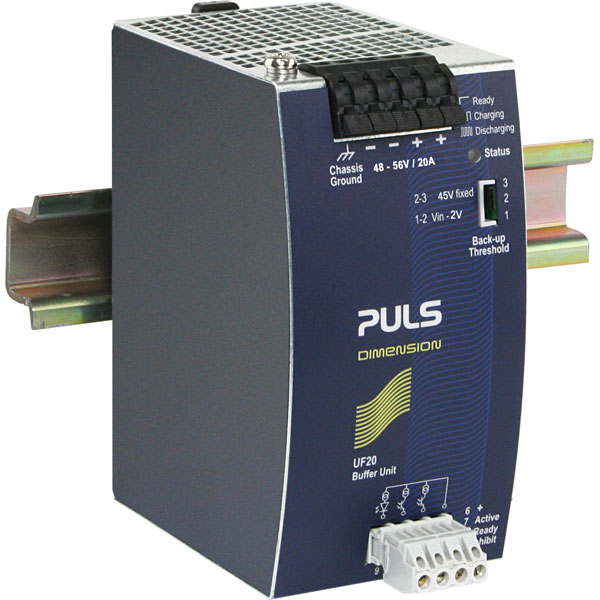

PULS UF20.481 DIN Rail Power Supply Single Phase 48VDC 20A 960W

This buffer unit from PULS has been manufactured to a high standard, with a compact design that is ideal for use in panel board installations or other building-in applications where a suitable mechanical enclosure shall be provided to fulfil local requirements.

The unit stores energy in integrated electrolytic capacitors on occasions when the power supply provides sufficient voltages. In case of a mains voltage fault, this energy is released again in a regulated process. These mains faults are completely bridged by the buffer unit, increasing the reliability of the system as a whole.

Once mains power fails or is switched off, the buffer unit will continue to provide the load current for a defined period of time. Process data can be saved and processes can be terminated before the DC power switches off. Controlled restarts are subsequently possible.

• Supplementary device for regulated DC48V power supplies
• Buffering with electrolytic capacitors instead of lead batteries
• Buffering of 48V loads
• Minimum hold-up time 0.1s at 20A and 0.2s at 10A
• Longer hold-up time at lower loads
• Clear status indication via LED and signalling terminals
• Quick-connect spring-clamp terminals
• Manufacturer's three-year warranty
• Manufacturer's part UF20.481
