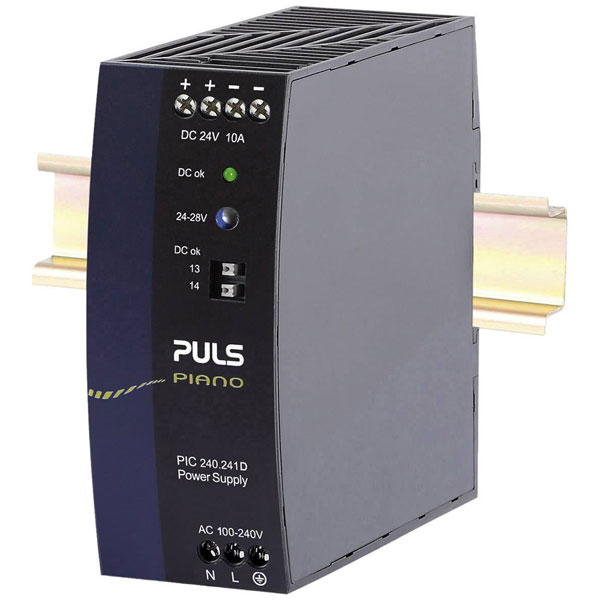

PULS PIC240.241D Piano Rail PSU DIN 24V 10A 240W 1 Output Compact

The PULS piano rail-mounted PSU (DIN) is a 24 V, 10 A, 240 W power supply unit with a single output, ideal for industrial power applications. Manufactured by PULS, this reliable PSU is designed for easy installation on DIN rails, ensuring robust performance. It is suitable for a range of industrial environments where consistent and efficient power delivery is crucial.

Nominal value output current 1	10A
Number of Outputs	1
Power Rating	240W
Connections	Screw terminal
Dimensions (L x W x H)	124 x 49 x 124mm
Height	124mm
Input voltage AC (frequency-specific)	115 V/AC 230V
Inputs	1
Max. output current 1	10A
Maximum input voltage [AC]	240V
Maximum Temperature	+55°C
Min. temperature	-10°C
Minimum Input Voltage [AC]	100V
Misc Attribute 1	Power Supply
Misc Attribute 2	Piano
Nominal value output voltage 1	24V
Phases	1
Type of electric connection	Screw terminal
Voltage type (supply voltage)	Rail mounted PSU (DIN)
Weight	540g
Width	49mm
