PTR Hartmann 50840030201D Screw Terminal 4.00mm² 3 Pins Green 1pc

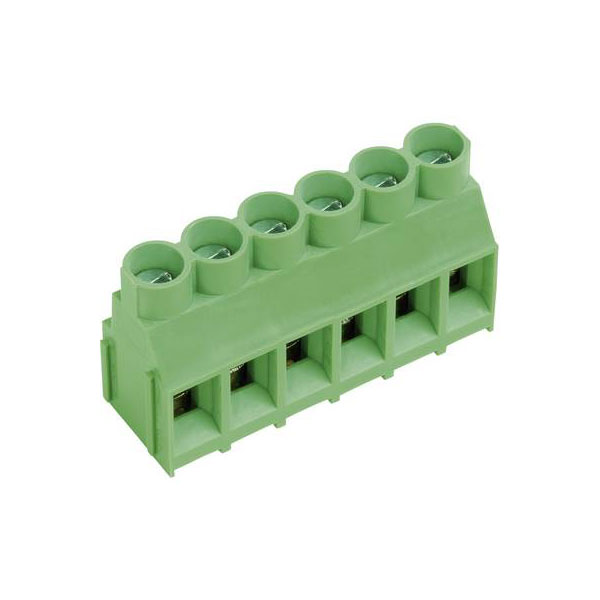

Image Representative of Range

PTR Hartmann 50840030201D Screw Terminal 4.00mm² 3 Pins Green 1pc

PTR
Order Code:

06-2829

Brand: PTR MPN: 50840030201D EAN-13: 2050001584908
Qty Unit Price (Ex VAT)
10+ £0.656
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
8 available to back orderBack-order availability date - 09/01/2026

The PTR Hartmann screw terminal with model number 50840030201D is a green, three-pin PCB connector designed for 4.00 mm² wire. This screw terminal block is commonly used in printed circuit boards for secure electrical connections. Its durable construction makes it suitable for various industrial and electronic applications.
No. of Ways 3
No. of Levels 1
Voltage Rating 300V
Current Rating 30A
Actuation direction Perpendicular (to the PCB)
AWG (min.) 28
AWG max. 10
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 4.00mm²
Cross section (flexible) (min.) 0.20mm²
Cross section (inflexible) (max.) 6.00mm²
Cross section (inflexible) (min.) 0.20mm²
CS 6.35mm
Factory colour Green
Height 19.65mm
Length 12.50mm
Min. stripping length 7mm
Misc Attribute AKZ840/3-6.35-V
Pins per row 3
Series AKZ840
Stripping length (max.) 7mm
Type Screw terminal
Width 25.90mm
Wire protection Yes
