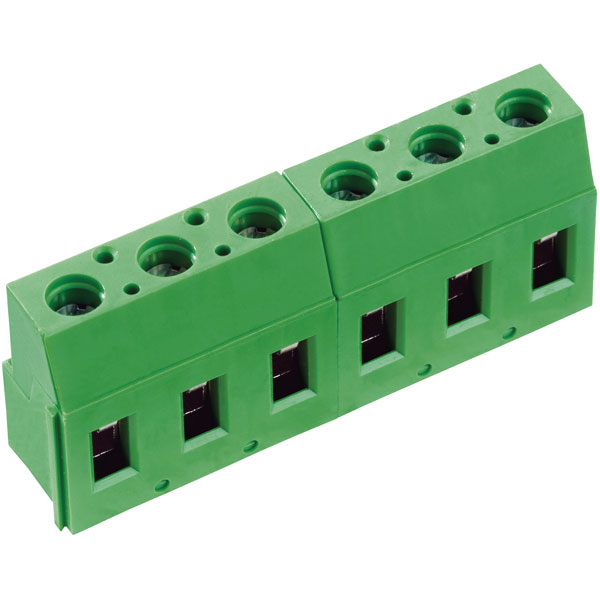

PTR 24A PCB Screw Terminal Block 7.5/7.62mm Pitch

PTR Brand: PTR

Solderable 24A screw connector terminal blocks from PTR, 7.5mm or 7.62mm pitch, available in a range of sizes from 2-pole to 12-pole.

  • Colour green
  • Wire size AWG 30-12
Description Image Product Buy Pricing (Ex VAT) Pitch No. of Rows Current Rating Colour Wire Gauge (AWG) Wire Gauge (mm²)
PTR 50710020201E 2-Way PCB Screw Terminal Block 7.5mm 24A
PTR 50710020201E 2-Way PCB Screw Terminal Block 7.5mm 24A
Standard range
Order code: 50-7918
MPN: 50710020201E

Order in multiples of 5


658 in stock, despatched in 4 working days
20+ £0.330
Price per unit Ex VAT 		7.5mm 1 24A Green N/A N/A
PTR 50710030201E 3-Way PCB Screw Terminal Block 7.5mm 24A
PTR 50710030201E 3-Way PCB Screw Terminal Block 7.5mm 24A
Standard range
Order code: 50-7919
MPN: 50710030201E

Order in multiples of 5


500 in stock, despatched in 4 working days
10+ £0.470
Price per unit Ex VAT 		7.5mm 1 24A Green N/A N/A
PTR 50710040201E 4-Way PCB Screw Terminal Block 7.5mm 24A
PTR 50710040201E 4-Way PCB Screw Terminal Block 7.5mm 24A
Standard range
Order code: 50-7920
MPN: 50710040201E

Order in multiples of 5


332 in stock, despatched in 4 working days
10+ £0.640
Price per unit Ex VAT 		7.5mm 1 24A Green N/A N/A
PTR 50710060201D 6-Way PCB Screw Terminal Block 7.5mm 24A
PTR 50710060201D 6-Way PCB Screw Terminal Block 7.5mm 24A
Extended range
Order code: 50-7924
MPN: 50710060201D

Order in multiples of 5


Available to back order
5+ £0.980
Price per unit Ex VAT 		7.5mm 1 24A Green N/A N/A
PTR 50710020213E 2-Way PCB Screw Terminal Block 7.62mm 24A
PTR 50710020213E 2-Way PCB Screw Terminal Block 7.62mm 24A
Standard range
Order code: 50-7929
MPN: 50710020213E

Order in multiples of 5


163 in stock, despatched in 4 working days
20+ £0.344
Price per unit Ex VAT 		7.62mm 1 24A Green N/A N/A
PTR 50710030213E 3-Way PCB Screw Terminal Block 7.62mm 24A
PTR 50710030213E 3-Way PCB Screw Terminal Block 7.62mm 24A
Standard range
Order code: 50-7930
MPN: 50710030213E

Order in multiples of 5


39 in stock, despatched in 4 working days
10+ £0.480
Price per unit Ex VAT 		7.62mm 1 24A Green N/A N/A
PTR 50710040213E 4-Way PCB Screw Terminal Block 7.62mm 24A
PTR 50710040213E 4-Way PCB Screw Terminal Block 7.62mm 24A
Standard range
Order code: 50-7931
MPN: 50710040213E

Order in multiples of 5


131 in stock, despatched in 4 working days
10+ £0.660
Price per unit Ex VAT 		7.62mm 1 24A Green N/A N/A
50-7918
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts2
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/2-7.5-V
50-7919
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts3
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/3-7.5-V
50-7920
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5 mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts4
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/4-7.5-V
50-7923
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts5
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/5-7.5-V
50-7924
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts6
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/6-7.5-V
50-7925
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5 mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts7
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/7-7.5-V
50-7926
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts8
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/8-7.5-V
50-7927
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts10
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/10-7.5-V
50-7928
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.5mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts12
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AK710/12-7.5-V
50-7929
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62 mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts2
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/2-7.62-V
50-7930
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62 mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts3
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/3-7.62-V
50-7931
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts4
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/4-7.62-V
50-7932
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62 mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts5
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/5-7.62-V
50-7933
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts6
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/6-7.62-V
50-7939
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts8
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/8-7.62-V
50-7940
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts10
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/10-7.62-V
50-7941
AWG size30-12
ColourGreen
Contact materialCu Zn
Cross-sectionUp to 4.0mm²
Grid pitch7.62mm
MaterialPA, UL94 V-0
Nominal current24A
Nominal voltage750V
Number of contacts12
Product SpecificationsInsertion direction. vertically
SpecificationScrew clamp, solderable
Stripping length8.0mm
Type (manufacturer type)AKZ710/12-7.62-V
