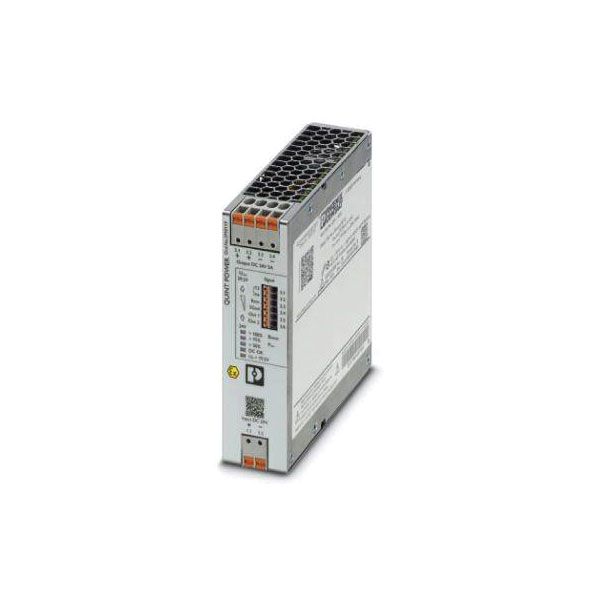

Phoenix Contact 2910119 QUINT4 converter 24V DC 5A rail mount SFB.

The Phoenix Contact QUINT4-PS/24DC/24DC/5/PT is a 5 A DC/DC converter ideal for industrial applications. This converter is designed for rail mounting, ensuring easy integration into existing systems. It serves as a reliable power supply module for converting and regulating 24 V DC inputs to stable 24 V DC outputs.

Output Voltage	24V DC
Input Voltage Range	32V DC
Power Rating	120W
Output Current	5A
1st secondary output voltage	24 - 29.5V
2nd secondary output voltage	- - -V
3rd secondary output voltage	- - -V
Built-in height	130mm
Built-in Width	N/Amm
Connection	Push-in connector
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
Depth	125mm
Dim	(L x W x H) 125 x 36 x 130 mm
Direct mounting possible	false
Efficiency	92.2%
Height	130mm
IP Rating	IP20
Length	125mm
Max. output current	5A
Max. output current 1	10A
Max. output current 2	N/AA
Max. output current 3	N/AA
Maximum Operating Temperature	+70°C
Maximum Temperature	+85°C
Min. operating temperature (derating)	+60°C
Min. temperature	-40°C
Minimum Input Volage	18V DC
Misc Attribute	QUINT4-PS/24DC/24DC/5/PT
MTBF	1600000h
Nominal Input Voltage	24 V/DC
Nominal value output current 1	5A
Nominal value output current 2	N/AA
Nominal value output current 3	N/AA
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/AV
Nominal value output voltage 3	N/AV
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	None
Power Consumption	N/AVA
Power Output	120W
Rated supply voltage AC 50 Hz	- - -V
Rated supply voltage AC 60 Hz	- - -V
Rated supply voltage DC	18 - 32V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	None
Stabilized	true
Suitable for distribution board	false
Suitable for rail mounting	true
Suitable for safety functions	true
Type	DC/DC converter
Type of electric connection	Other
Voltage type (supply voltage)	DC
Wall mounting possible	false
Weight	0.6kg
Width	36mm
Width in number of modular spacings	N/A
