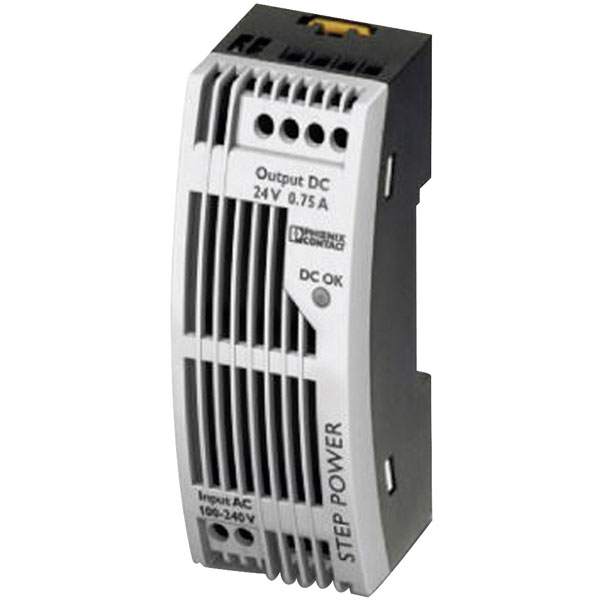

Phoenix Contact 2868622 STEP-PS/1AC/FL DIN Rail Power Supply 24V DC 0.75A 18W

This compact power supply from Phoenix Contact has been designed specifically for service distribution and flat control panels. At the output there are 24V DC and max. 0.75A are available. Through the high degree of efficiency and low standby, a high level of energy efficiency is achieved.
Worldwide use of wide-range output and international approval package, while other features include: high operational reliability thanks to high MTBF >500 000 h, parallel switch bar for increased output and redundancy, simplified operation by LED fault monitoring, high reliability through long mains buffering times> 20MS and snapped onto the DIN rail or screwing-on to flat surface.

• Input voltage range: 85-264V AC/95-250V DC
• 1 phase
• Output: 24V DC 0.75A 18W
• Switched Mode
• Termination type: Screw terminals
• Manufacturer's part 2868622

For more information on this Phoenix Contact power supply, please see its datasheet.
DIN rail power supply

Output Voltage	24V
Output Current	0.75
Input Voltage	85 - 264 AC
Number of Outputs	2
