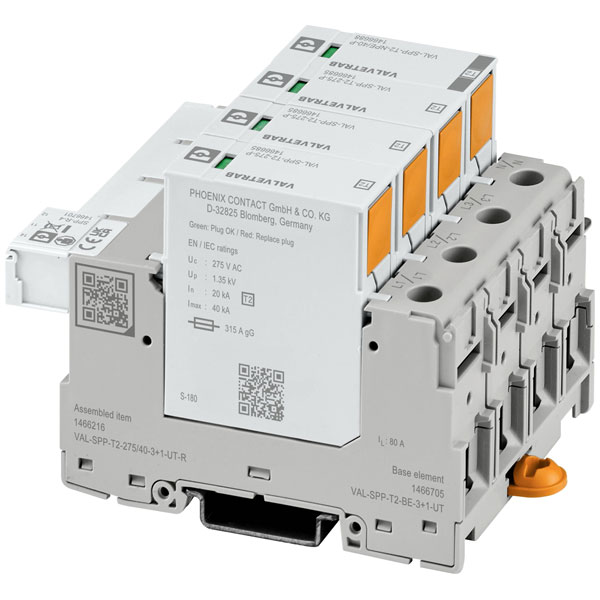

Phoenix Contact 1466216 VAL-SPP-T2 surge arrester 80 kA status display

The Phoenix Contact 1466216 surge arrester is designed for protecting switchboards with a capacity of up to 80 kA. It serves as a Type 2 device to safeguard electrical systems from surges. Typical applications include industrial and commercial power distribution systems.

Type	Surge arrester
Category type 2	true
Colour	Grey, Grey-white (RAL 7035)
Construction size	N/A
Degree of protection (IP)	N/A
Depth	71.5mm
Dim	(W x H x D) 71.2 x 109.1 x 71.5 mm
Height	109.1mm
Integrated backup fuse	N/A
Integrated short-circuit protection	N/A
Integrated short-circuit protection selective to fuse gG	N/AA
IP Rating	IP20
Leakage Current	80kA
Leakage-current free	false
Max. conductor cross section flexible (fine-strand)	N/Amm²
Max. conductor cross section solid (solid, stranded)	N/Amm²
Max. continuous voltage AC	N/AV
Max. continuous voltage DC	N/AV
Max. discharge surge current (8/20)	N/AkA
Max. overcurrent protection device, parallel connection (fuse)	315A
Max. overcurrent protection device, series connection (fuse)	80A
Max. PV-voltage	N/AV
Mounting method	N/A
Nominal discharge surge current (8/20)	N/AkA
Nominal voltage AC	N/AV
Nominal voltage DC	N/AV
Number of conductors (without earthing)	N/A
Operating Temperature	- 40 - 85°C
Pick-up time (details)	≤ 25ns
Short-circuit breaking capacity (Isccr)	N/AkA
Signalling at the device	Optical
Surge protection for	Switchboards
System configuration DC	false
System configuration IT	false
System configuration other	false
System configuration TN	false
System configuration TN-C	false
System configuration TN-C-S	false
System configuration TN-S	true
System configuration TT	false
Voltage protection level	N/AkV
Voltage protection level L-N	N/AkV
Voltage protection level N-PE	N/AkV
Width	71.2mm
With remote signalling contact	N/A
