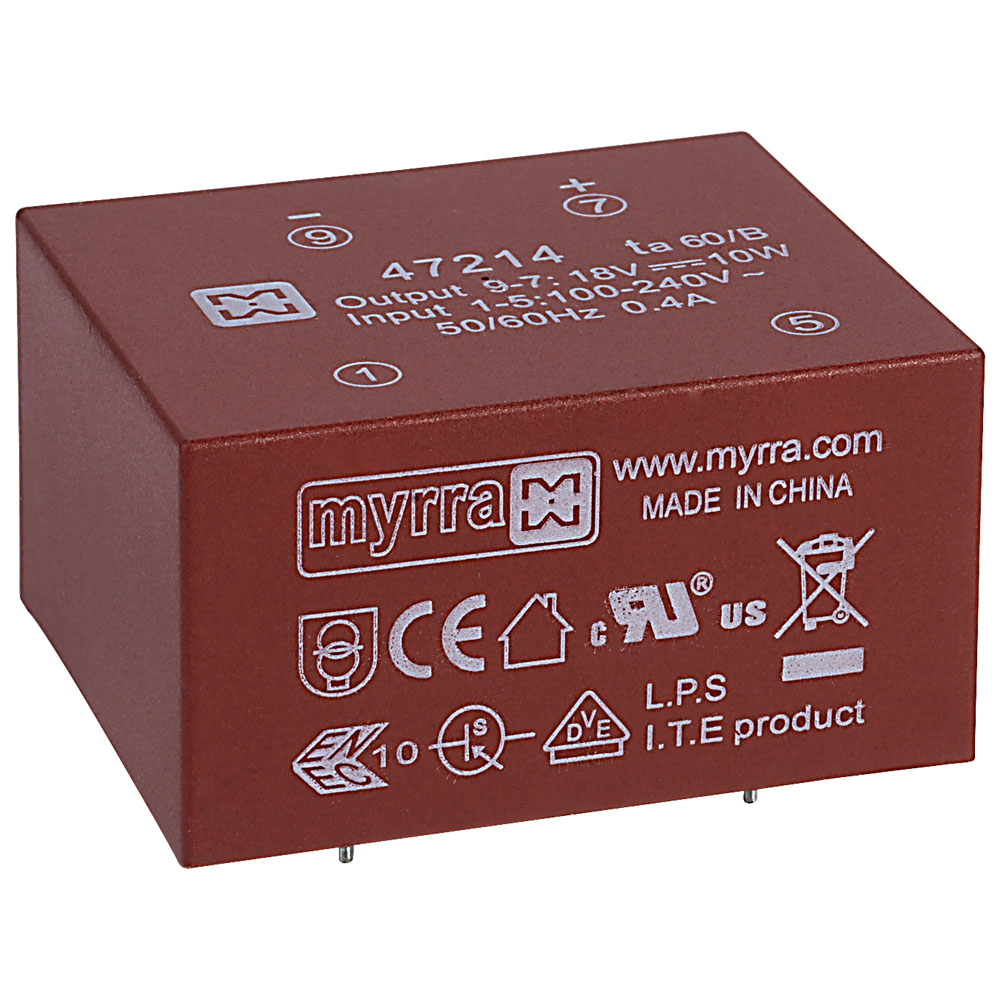

Myrra 47214 10W 18V AC-DC Power Supply Single Output

A 10W, 18V DC power supply from the 47000 series of regulated single output power supplies. The PSU has a universal AC/DC input range and comes in a compact, encapsulated PCB mounting package, with the same footprint as the E148 transformer, allowing you to upgrade your applications without having to redesign your PCBs.

The PSU is regulated and features a very low standby consumption (< 0.1W), with better energy efficiency that meets the requirements of Energy Star and EC Code of Conduct.

• PCB Mounting
• Safety IEC, UL/CUL, CE, VDE, ENEC Mark
• Emissions conform to EN and FCC
• Rated to UL 94-V0

Output Power Max	10W
Output Voltage	3.3V
Output Current	560mA
Dimensions	48 x 40 x 26mm
Efficiency	82%
Input Voltage	85 to 265V
