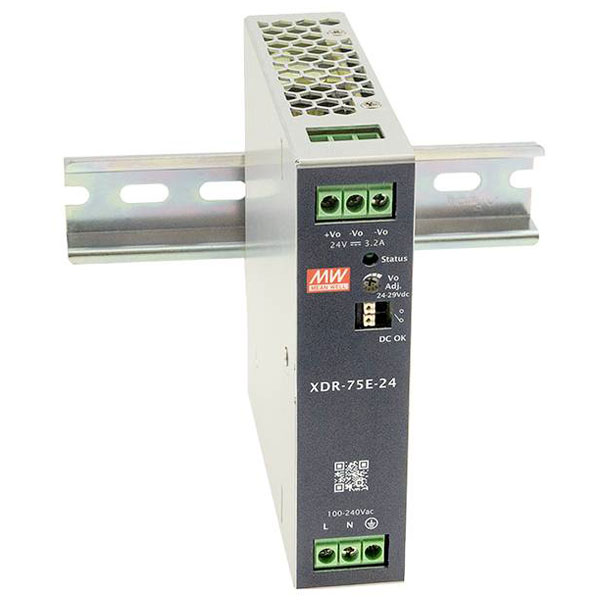

Mean Well's XDR-75E-24 power supply unit is a robust solution designed for industrial applications, featuring a versatile open and DIN rail-mountable construction. With a 24V DC output at 3.2A, this industrial power supply unit delivers a reliable and steady current, making it ideal for automation systems, control panels, and machinery that require consistent power delivery. Its design supports installation on DIN rails, facilitating easy integration into existing electrical systems and ensuring efficient space utilisation. The unit's suitability for challenging environments, combined with its compatibility with a wide range of electrical systems, underscores its effectiveness in both commercial and industrial settings. Recognised by the alternate description 3431219, this power supply module exemplifies excellence in engineering design, meeting rigorous electrical standards for safety and performance.
| Type |
Rail mounted PSU (DIN) |
| Nominal value output current 1 |
3.2A |
| Number of Outputs |
1 |
| Power Rating |
75W |
| Content |
1 |
| Depth |
116mm |
| Dimensions (L x W x H) |
116 x 30 x 125.2mm |
| Efficiency |
90% |
| Height |
125.2mm |
| IP Rating |
Protection class I |
| Max. output current 1 |
3.2A |
| Max. temperature |
-40°C |
| Maximum input voltage |
264V |
| Maximum Operating Temperature |
+70°C |
| Maximum Temperature |
-40°C |
| Min. temperature |
+70°C |
| Minimum Input Voltage |
85V |
| Minimum Operating Temperature |
+70°C |
| Nominal value output current 2 |
3.2A |
| Nominal value output current 3 |
3.2A |
| Nominal value output voltage 1 |
24V |
| Operating temperature (min.) |
-40°C |
| Output current (max.) - rounded |
3.2A |
| Output voltage (max.) |
24V |
| Power |
76.8W |
| Product Type |
Rail mounted PSU (DIN) |
| Type of electric connection |
Screw terminal |
| Width |
30mm |
