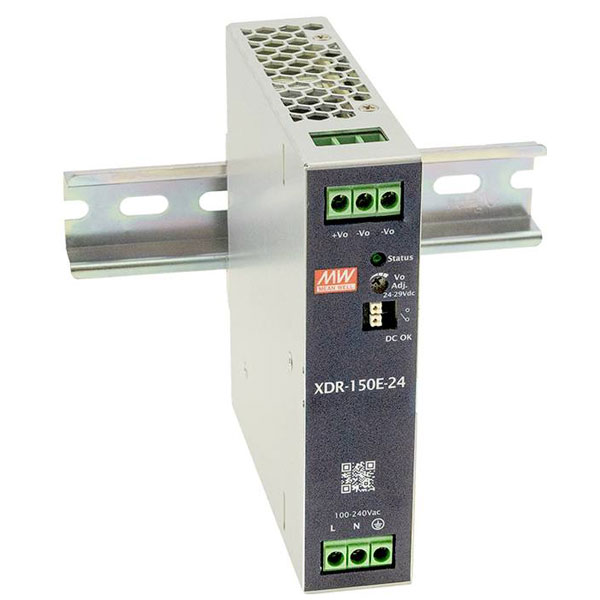

MW Mean Well XDR-150E-24 Power Supply Units Open & DIN

Mean Well XDR-150E-24 is a robust and reliable DIN rail power supply unit designed for industrial applications requiring stable and efficient power delivery. With an output of 24 volts, this open frame power supply unit can seamlessly integrate into a wide range of installations due to its rail mount design, offering ease of installation and maintenance. It provides high performance and durability, suitable for use in both commercial and factory settings, where consistent power supply is critical for operational efficiency. The XDR-150E-24's compact form factor ensures it can be fitted into tight spaces without compromising functionality, making it an ideal choice for engineers seeking a dependable power solution for complex electrical systems.

Type	Rail mounted PSU (DIN)
Number of Outputs	1
Power Rating	150W
Content	1
Depth	116mm
Dimensions (L x W x H)	116 x 30 x 125.2mm
Efficiency	91%
Height	125.2mm
IP Rating	Protection class I
Max. output current 1	6.5A
Max. temperature	-40°C
Maximum input voltage	264V
Maximum Operating Temperature	+70°C
Maximum Temperature	-40°C
Min. temperature	+70°C
Minimum Input Voltage	85V
Minimum Operating Temperature	+70°C
Nominal value output voltage 1	24V
Operating temperature (min.)	-40°C
Output current (max.) - rounded	6.5A
Output voltage (max.)	24V
Power	156W
Product Type	Rail mounted PSU (DIN)
Type of electric connection	Screw terminal
Width	30mm
