Molex PCB Headers - Female Sockets Built-in pin strip (standard) 608998

Molex Brand: Molex
Molex produces a range of Spox KK 396 connectors, including pin strips and headers with various pin counts and friction lock features for wire-to-board applications.
Description Image Product Buy Pricing (Ex VAT) Number of Positions Board contact surface Cross Section Engineering Part No Engineering Series Name Engineering Series No Type Number of Rows Case Material Coating thickness (PCB side) Colour Connection Connector coating thickness Connector contact surface Connector orientation Contact Material Max. temperature Min. temperature Misc Attribute Nominal Current

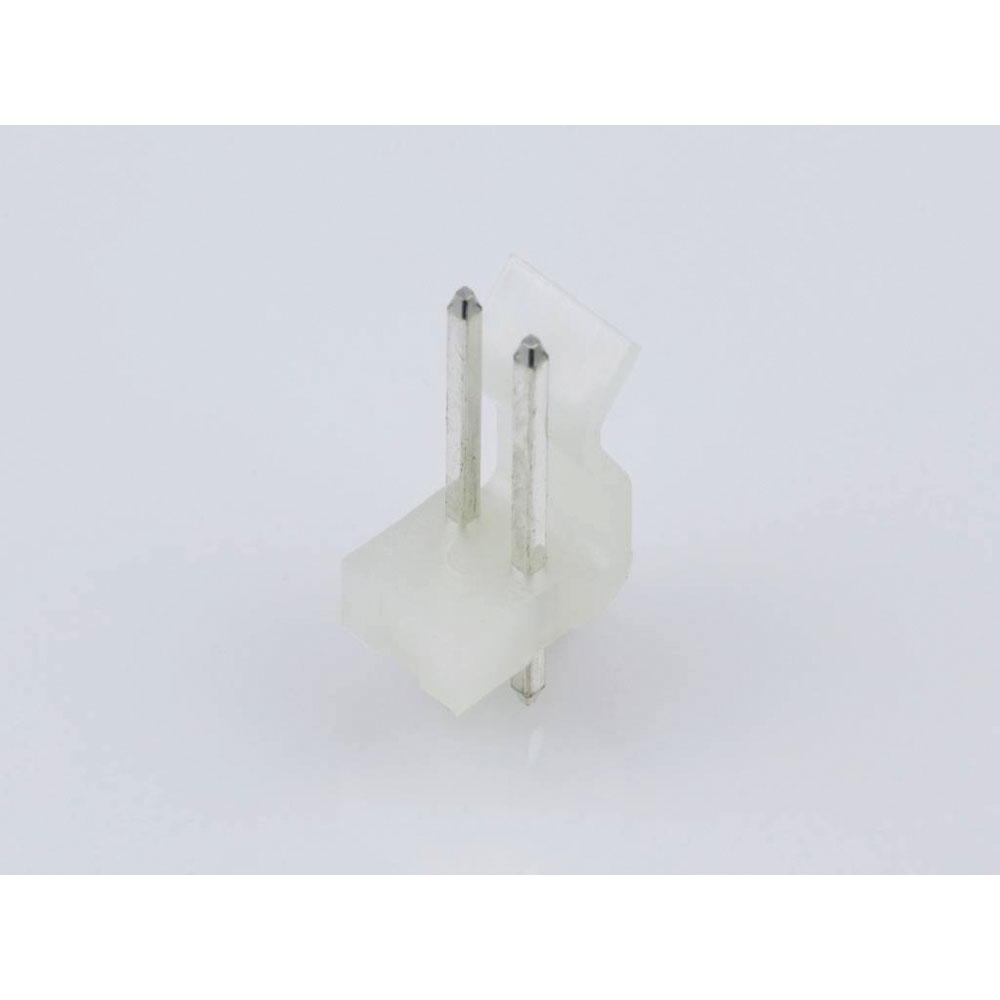

Molex 09652028 Spox KK 396 Pin Strip 2 Pins 3.96mm Spacing Friction Lock
Molex 09652028 Spox KK 396 Pin Strip 2 Pins 3.96mm Spacing Friction Lock
Standard range
Order code: 05-2776
MPN: 09652028

3,677 in stock, despatched in 4 working days
25+ £0.160
100+ £0.126
Price per unit Ex VAT 		2 Ni 3.96mm 5273-02A .156 Spox Hdr w/lock 05273 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
Molex 09652038 Spox KK 396 Header Friction Lock 3 Pins 3.96 Mm Spacing
Molex 09652038 Spox KK 396 Header Friction Lock 3 Pins 3.96 Mm Spacing
Standard range
Order code: 05-2777
MPN: 09652038

6,556 in stock, despatched in 4 working days
25+ £0.195
200+ £0.154
Price per unit Ex VAT 		3 Tin 3.96mm 5273-03A .156 Spox Hdr w/lock 05273 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
Molex 09652048 Spox Wire-to-board Header 4 Pins 3.96mm Vertical
Molex 09652048 Spox Wire-to-board Header 4 Pins 3.96mm Vertical
Standard range
Order code: 05-2778
MPN: 09652048

2,698 in stock, despatched in 4 working days
20+ £0.223
250+ £0.188
1000+ £0.158
5000+ £0.156
Price per unit Ex VAT 		4 Tin 3.96mm 5273-04A .156 Spox Hdr w/lock 05273 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
Molex 09652058 Spox KK 396 Built-in Pin Strip 5 Pins 3.96mm Spacing
Molex 09652058 Spox KK 396 Built-in Pin Strip 5 Pins 3.96mm Spacing
Standard range
Order code: 05-2779
MPN: 09652058

35 in stock, despatched in 4 working days
20+ £0.391
200+ £0.370
750+ £0.352
3000+ £0.291
6000+ £0.280
Price per unit Ex VAT 		5 Tin 3.96mm 5273-05A .156 Spox Hdr w/lock 05273 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
Molex 10321021 Spox Header 5.08mm Pitch 2 Pins Vertical Friction Lock
Molex 10321021 Spox Header 5.08mm Pitch 2 Pins Vertical Friction Lock
Standard range
Order code: 05-2787
MPN: 10321021

3,791 in stock, despatched in 4 working days
20+ £0.374
200+ £0.365
750+ £0.349
3000+ £0.286
6000+ £0.275
Price per unit Ex VAT 		2 Tin 5.08mm 5281-02A .200 STR FRC LOCK HD 05281 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
Molex 10321051 Spox Header 5 Pins 5.08mm Pitch Vertical Friction Lock
Molex 10321051 Spox Header 5 Pins 5.08mm Pitch Vertical Friction Lock
Standard range
Order code: 05-2788
MPN: 10321051

112 in stock, despatched in 4 working days
5+ £0.994
200+ £0.984
750+ £0.973
Price per unit Ex VAT 		5 Tin 5.08mm 5281-05A .200 STR FRC LOCK HD 05281 Built-in pin strip (standard) 1 Nylon (NL) 5.08µm Ecru Soldering 5.08µm Tin Perpendicular (to the PCB) Brass +105°C -40°C Molex MOL Power & Signal Sol. 7A
