Molex 09652028 Spox KK 396 Pin Strip 2 Pins 3.96mm Spacing Friction Lock

Molex
Order Code:

05-2776

Brand: Molex MPN: 09652028 EAN-13: 2050007094098
Qty Unit Price (Ex VAT)
25+ £0.160
100+ £0.126
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
3,677 in stock, despatched in 4 working days

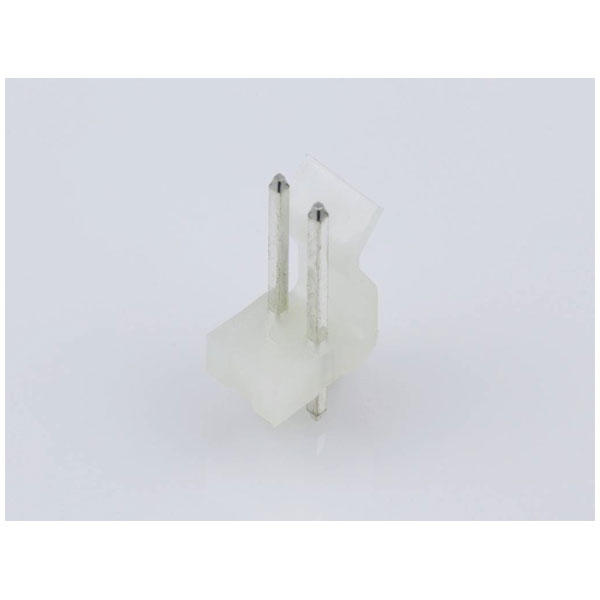

The Molex built-in pin strip features two pins with a contact spacing of 3.96 mm. Manufactured by Molex, this standard pin strip is supplied as a single piece in a bag. It is typically used for connecting electronic components on printed circuit boards.
Type Built-in pin strip (standard)
Number of Rows 1
Board contact surface Ni
Case Material Nylon (NL)
Coating thickness (PCB side) 5.08µm
Connection Soldering
Connector coating thickness 5.08µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
CS 3.96mm
Engineering Part No 5273-02A
Engineering Series Name .156 Spox Hdr w/lock
Engineering Series No 05273
Factory colour Ecru
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 7A
Nominal current - rounded value 7A
Nominal Voltage 250V
Packaging Type Bag
Total number of pins 2
