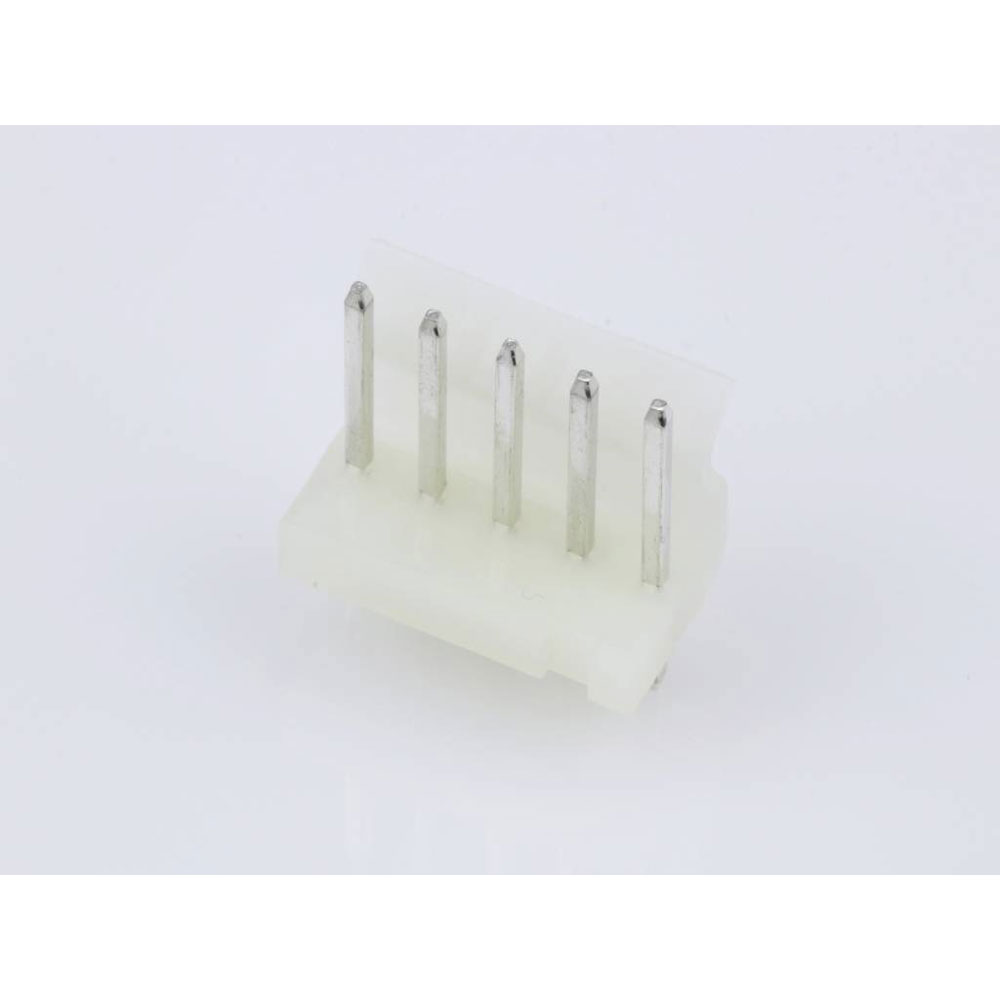

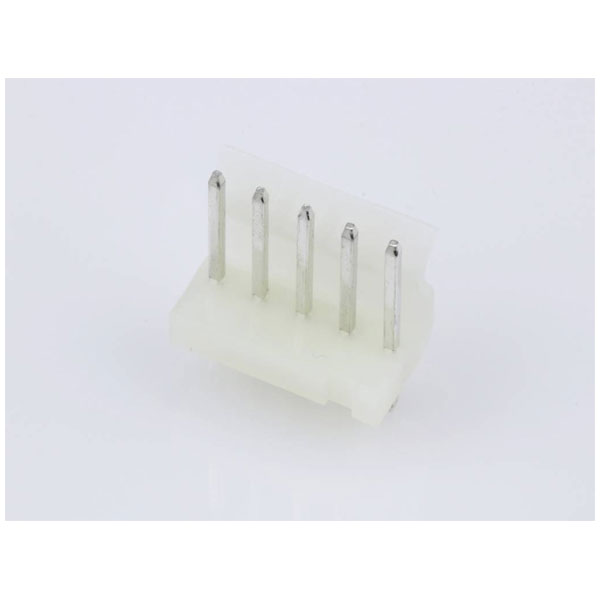

Molex 09652058 Spox KK 396 Built-in Pin Strip 5 Pins 3.96mm Spacing

Name: Molex 09652058 Spox KK 396 Built-in Pin Strip 5 Pins 3.96mm Spacing
Brand: Molex
Price: 0.490 GBP
Availability: InStock

Standard range

Order Code:

05-2779

Brand: Molex MPN: 09652058

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (6)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.490
200+	£0.370
750+	£0.350
3000+	£0.290
6000+	£0.280

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

55 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Molex Built-in pin strip (standard) features five pins with a contact spacing of 3.96 mm. It is a reliable component suitable for various electronic connections. Common applications include use in circuit boards and electrical device assemblies.

No. of rows	1
Board contact surface	Tin
Case material	Nylon (NL)
Coating thickness (PCB side)	5.08µm
Connection	Soldering
Connector coating thickness	5.08µm
Connector contact surface	Tin
Connector orientation	Perpendicular (to the PCB)
Contact material	Brass
CS	3.96mm
Engineering Part No	5273-05A
Engineering Series Name	.156 Spox Hdr w/lock
Engineering Series No	05273
Factory colour	Ecru
Manufacturer part #	09652058
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	Molex MOL Power & Signal Sol.
Nominal current	7A
Nominal current - rounded value	7A
Nominal voltage	250V
Packaging type	Bag
RoHS-compliant	Yes
Total number of pins	5
Type	Built-in pin strip (standard)
