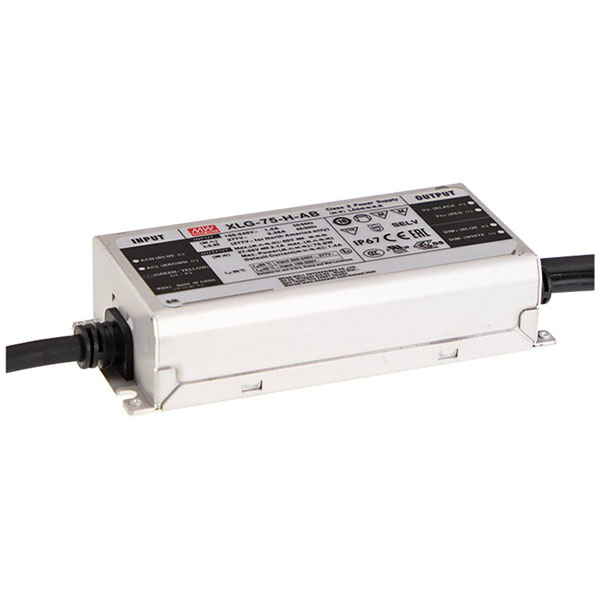

Mean Well XLG-75-H-A LED driver 75W 27-56V DC adjustable surge protected

Mean Well
Order Code:

05-1945

Brand: Mean Well MPN: XLG-75-H-A EAN-13: 4021087051439
Qty Unit Price (Ex VAT)
1+ £28.20
10+ £25.38
25+ £24.37
50+ £23.50
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

The Mean Well XLG-75-H-A LED driver provides constant power of 75 W with adjustable output of 1300 - 2100 mA and voltage range of 27 - 56 V DC. It features surge protection and overvoltage capabilities, making it suitable for outdoor use, including on flammable surfaces and furniture. Typical applications include powering LED strips and LED lighting systems.
Type LED driver
Output Voltage 27V DC
Max Output Power 75W
Output Current 1300mA
Colour Metal
Connection Open end cable
Dimensions (L x W x H) 140 x 63 x 32 mm
Height 32mm
IP Rating IP67
Length 140mm
Max. output current 2100mA
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Outputs 1
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
