Mean Well XLG-75-24-A LED driver 74.4W 24V DC PFC Circuit Surge Protection

Mean Well
Order Code:

05-1944

Brand: Mean Well MPN: XLG-75-24-A EAN-13: 4021087051446
Qty Unit Price (Ex VAT)
1+ £30.68
10+ £27.62
25+ £26.50
50+ £25.63
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

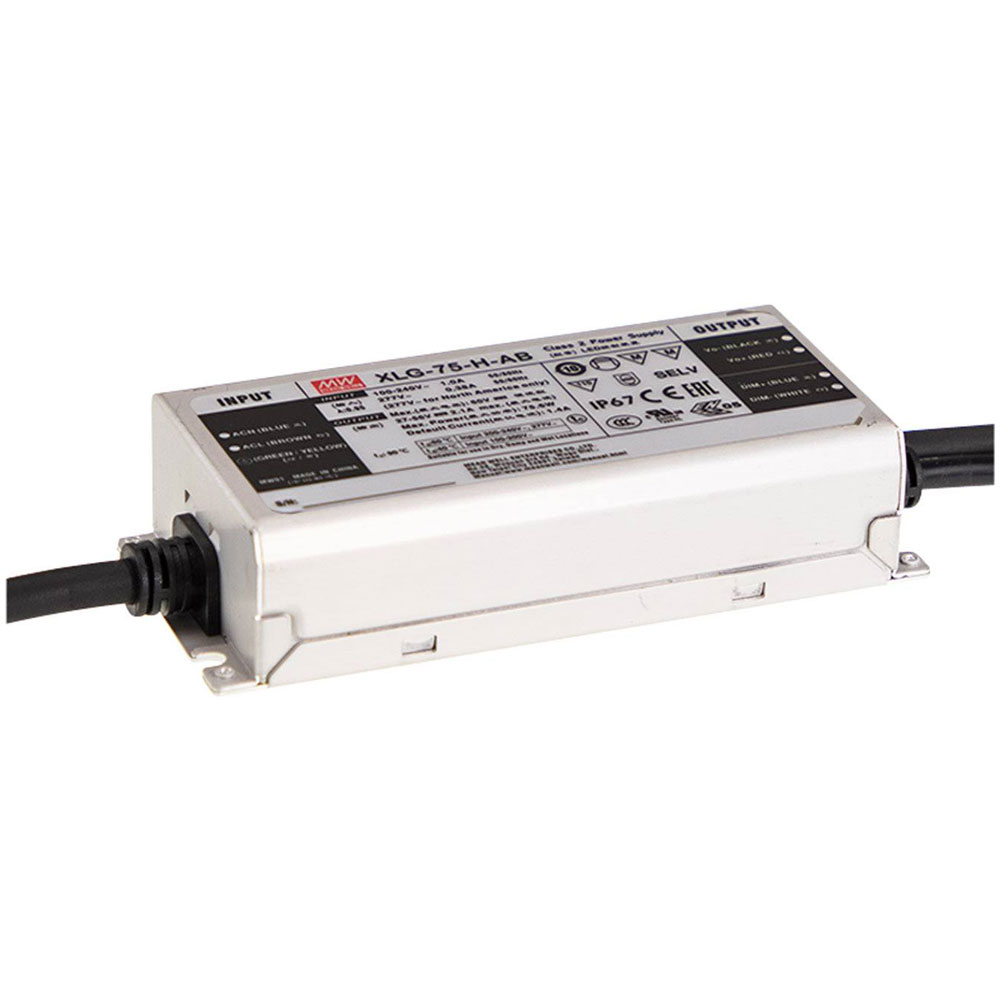

The Mean Well XLG-75-24-A is an LED driver delivering constant voltage and current, rated at 74.4 W, 1550 - 3100 mA, and 24 V DC, featuring surge protection and a PFC circuit. Approved for use on furniture and suitable for flammable surfaces, it is adjustable and designed for outdoor applications. Typical uses include powering LED strips and other LED installations.
Type LED driver
Connection Open end cable
Dim (L x W x H) 140 x 63 x 32 mm
Factory colour Metal
Height 32mm
IP Rating IP67
Length 140mm
Max. output current 3100mA
Max. power 74.4W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Outputs 1
Output current (max.) - rounded 3.1A
Output current (min.) 1550mA
Output voltage (max.) 24V DC
Power range 74.4 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
