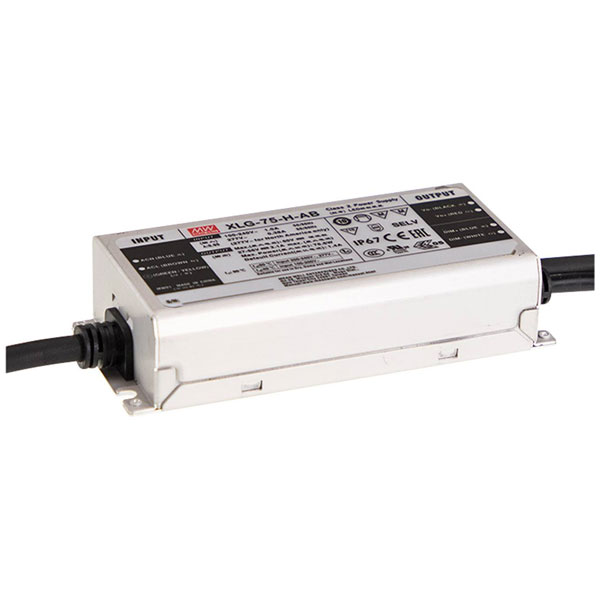

Mean Well XLG-75-12-A LED driver 60W 12V DC with PFC circuit surge protection

The Mean Well XLG-75-12-A LED driver provides constant voltage and current, delivering 60 W with a 12 V DC output. It features a PFC circuit, adjustable settings, surge protection, and overvoltage protection, making it suitable for outdoor use on flammable surfaces and approved for use on furniture. Typical applications include powering LED lighting systems such as LED strips and other similar installations.

Type	LED driver
Output Voltage	12V DC
Max Output Power	60W
Output Current	2500mA
Colour	Metal
Connection	Open end cable
Dimensions	(L x W x H) 140 x 63 x 32 mm
Height	32mm
IP Rating	IP67
Length	140mm
Max. output current	5000mA
Max. temperature	+90°C
Min. temperature	-40°C
Misc Attribute	Pulsed
Number of Outputs	1
Protection Class	I
Test mark	CE, CB, MM, ENEC, UL
Weight	580g
Width	63mm
