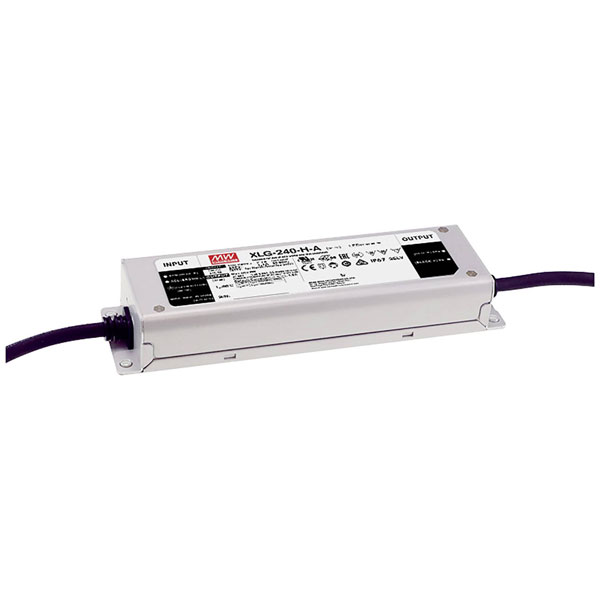

Mean Well XLG-240-M-A LED driver 239.4W adjustable outdoor surge protection

Mean Well
Order Code:

05-1937

Brand: Mean Well MPN: XLG-240-M-A EAN-13: 4021087051477
Qty Unit Price (Ex VAT)
1+ £44.89
10+ £40.40
25+ £38.79
50+ £37.48
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/12/2025

The Mean Well XLG-240-M-A is an LED driver with constant power output of 239.4 W, adjustable current between 700 - 2100 mA, and voltage range of 90 - 171 V DC. This driver is equipped with features such as a PFC circuit, surge protection, and suitability for flammable surfaces, making it ideal for outdoor applications and use with furniture. It ensures safety and reliability with its overvoltage protection, and is commonly used in LED
Type LED driver
Connection Open end cable
Dim (L x W x H) 219 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 219mm
Max. output current 2100mA
Max. power 239.4W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.1A
Output current (min.) 700mA
Output voltage (max.) 171V DC
Output voltage (min.) 90V DC
Power range 239.4 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
