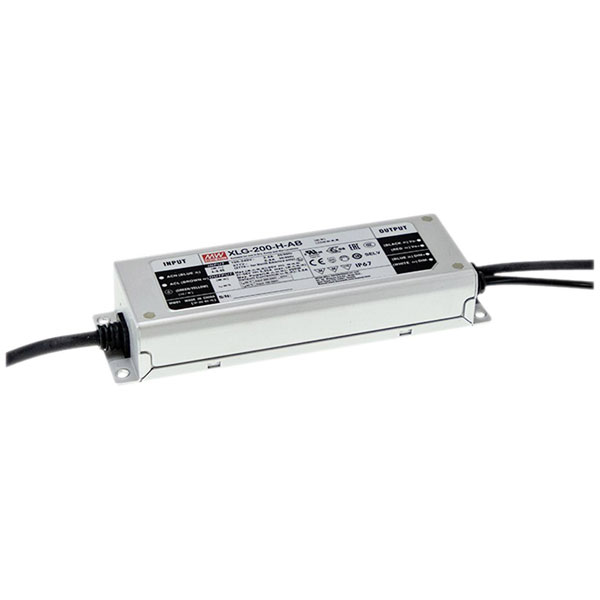

Mean Well XLG-200-12-A LED driver 192W 12V DC Outdoor use Surge protection

Mean Well
Order Code:

05-1927

Brand: Mean Well MPN: XLG-200-12-A EAN-13: 4021087051590
Qty Unit Price (Ex VAT)
1+ £47.45
10+ £42.72
25+ £41.01
50+ £39.62
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well XLG-200-12-A is an LED driver that provides constant voltage and current, featuring an output of 12 V DC and a current range of 8-16 A. It is approved for use on furniture and outdoors, with built-in surge protection, an adjustable PFC circuit, and overvoltage protection, making it suitable for installation on flammable surfaces. Typical applications include powering LED strips and providing reliable, durable lighting solutions.
Type LED driver
Connection Open end cable
Dim (L x W x H) 199 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 199mm
Max. output current 16A
Max. power 192W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 16A
Output current (min.) 8A
Output voltage (max.) 12V DC
Power range 192 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
