Mean Well UHP-200-48 uhp smpsu 50.4v 4.2a; efficient compact high-temp

Mean Well
Order Code:

05-1886

Brand: Mean Well MPN: UHP-200-48 EAN-13: 4021087040655
Qty Unit Price (Ex VAT)
1+ £56.68
5+ £54.98
10+ £53.28
25+ £51.02
50+ £49.31
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

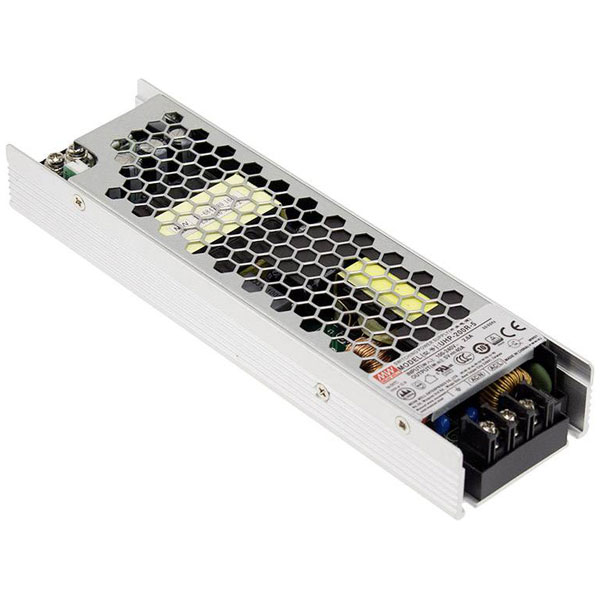

The Mean Well UHP-200-48 is a switch mode power supply unit delivering 50.4 V DC at 4.2 A, making it suitable for PCB mounting with solder lugs for easy integration. Featuring a compact design and screw terminals, it is ideal for applications requiring reliable power delivery on printed circuit boards. This SMPSU is commonly used in industrial equipment and electronic devices needing efficient, stable power solutions.
Connection Screw terminal
Dim (L x W x H) 194 x 55 x 26 mm
Height 26mm
Input voltage (max.) 90V AC
Length 194mm
Max. operating temperature (derating) 70°C
Max. output current 4.2A
Min. input voltage 264V AC
Misc Attribute 2 closed
Number of Outputs 1
Operating temperature (max.) -30°C
Output current (max.) - rounded 4.2A
Output voltage (max.) 50.4V DC
Output voltage (min.) 45.6V DC
PFC Yes (built-in)
PSU features Adjustable voltage output
Type SMPSU
Width 55mm
