Mean Well UHP-1000-12 UHP series SMPSU 12V DC 80A 960W 96% efficiency

Mean Well
Order Code:

05-1880

Brand: Mean Well MPN: UHP-1000-12 EAN-13: 4021087051835
Qty Unit Price (Ex VAT)
1+ £232.11
5+ £230.35
10+ £228.60
25+ £226.86
50+ £225.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

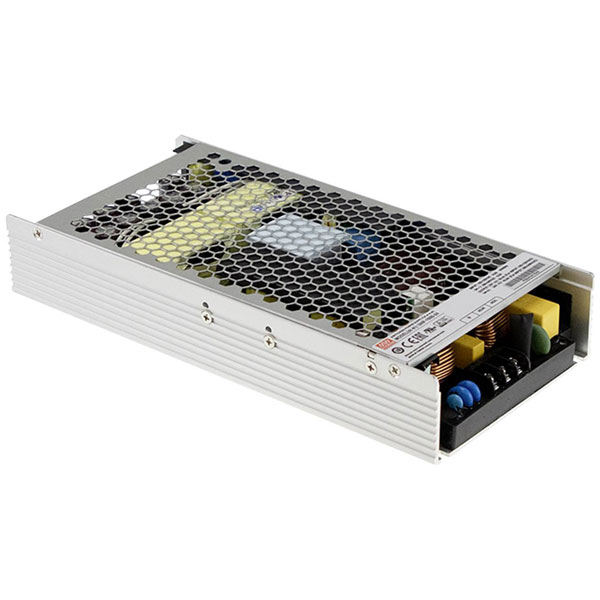

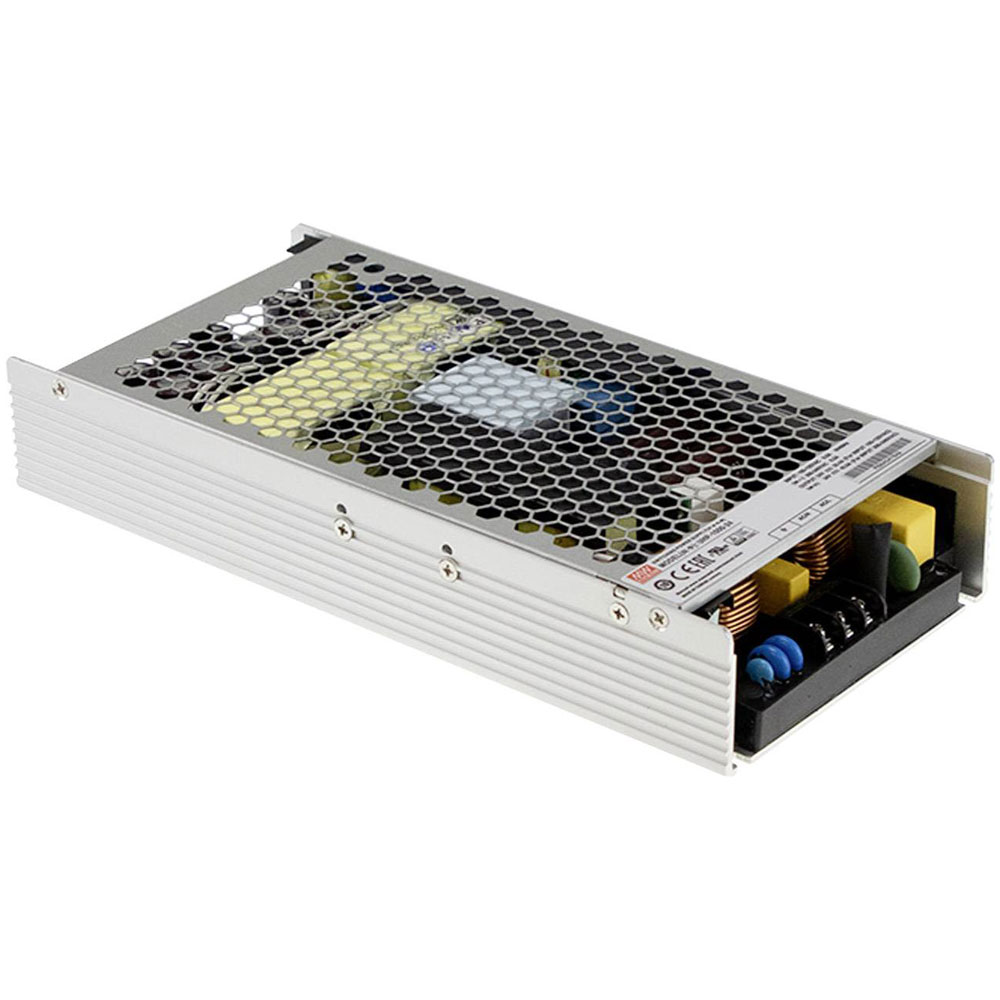

The Mean Well UHP-1000-12 is a PCB mounted switching mode power supply unit (SMPSU) that delivers 12 V DC at a current rating of 80 A and a power output of 960 W. It features solder lugs and screw terminals for secure and efficient connections. This power supply unit is ideal for high-power electronics, industrial applications, and large-scale LED lighting systems.
Connection Screw terminal
Dim (L x W x H) 240 x 115 x 41 mm
Height 41mm
Length 240mm
Max. output current 80A
Misc Attribute 2 closed
Misc Attribute 3 Pulsed
MTBF 2188600h
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 80A
Output voltage (max.) 12V DC
PFC Yes
Power 960W
PSU features Adjustable voltage output
Type SMPSU
Width 115mm
