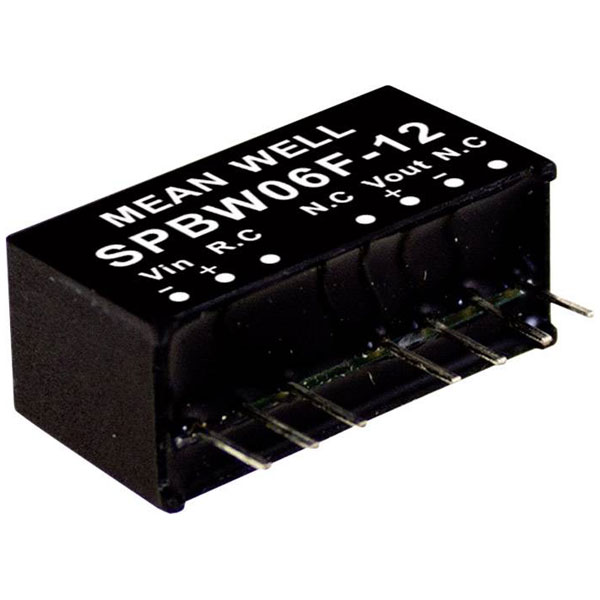

Mean Well SPBW06F-12 DC/DC converter 500mA 6W 1 output 1500V I/O insulation

Name: Mean Well SPBW06F-12 DC/DC converter 500mA 6W 1 output 1500V I/O insulation
Brand: Mean Well
Price: 8.52 GBP
Availability: InStock

Standard range

Order Code:

05-1848

Brand: Mean Well MPN: SPBW06F-12

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (15)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£8.52

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Mean Well SPBW06F-12 is a DC/DC converter module with a current rating of 500 mA and a power rating of 6 W. It features one output and is designed for efficient power conversion in electronic applications. Typical uses include industrial automation, telecommunications, and portable electronic devices where reliable voltage conversion is necessary.

Type	DC/DC converter (module)
Connection	Pins
Dim	(L x W x H) 21.8 x 9.2 x 11.1 mm
Efficiency (max.)	88%
Height	11.1mm
Input voltage (max.)	36V DC
Insulation voltage	1500V DC
Length	21.8mm
Max. output current	500mA
Min. input voltage	9V DC
Misc Attribute	SPBW06F-12
No. of outputs	1
Operating temperature (max.)	+85°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	500mA
Output voltage (max.)	12V DC
Power	6W
PSU features	DC-to-DC converter
Weight	4.8g
Width	9.2mm
