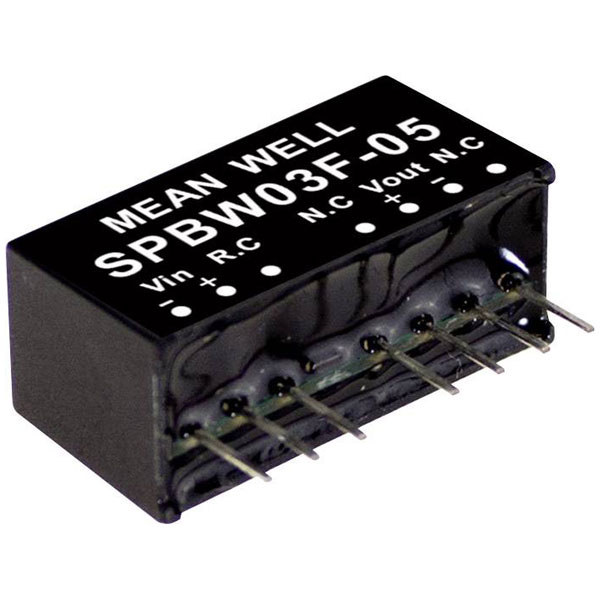

Mean Well SPBW03F-15 SPBW03 dc-dc converter 3W 200mA 1 output -40-90°C

Mean Well
Order Code:

05-1841

Brand: Mean Well MPN: SPBW03F-15 EAN-13: 4021087040969
Qty Unit Price (Ex VAT)
1+ £8.45
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well SPBW03F-15 is a DC/DC converter module with a current rating of 200 mA and a power output of 3 W. It provides one output and is typically used in applications requiring efficient voltage conversion. This converter is ideal for use in electronic systems where reliable current rectification is essential.
Connection Pins
Dim (L x W x H) 21.8 x 9.2 x 11.1 mm
Efficiency (max.) 84%
Height 11.1mm
Input voltage (max.) 36V DC
Insulation Voltage 1500V DC
Length 21.8mm
Max. output current 200mA
Min. input voltage 9V DC
Number of Outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 200mA
Output voltage (max.) 15V DC
Power 3W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 9.2mm
