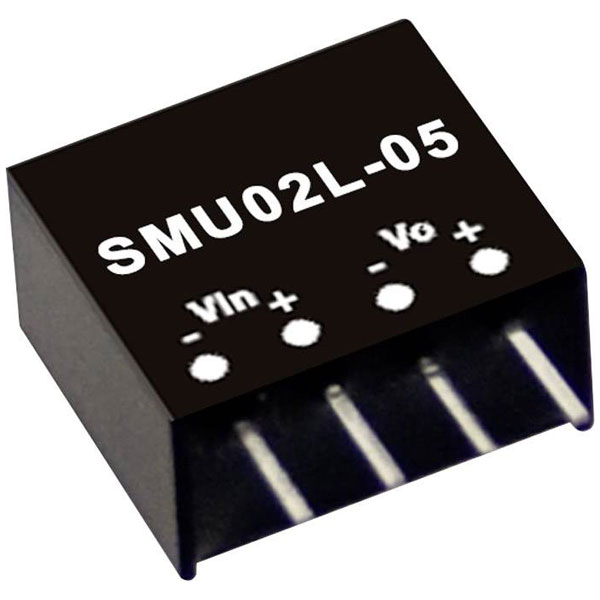

Mean Well SMU02L-05 DC/DC converter module 400mA 2W 1 output 1pc

Name: Mean Well SMU02L-05 DC/DC converter module 400mA 2W 1 output 1pc
Brand: Mean Well
Price: 5.61 GBP
Availability: InStock

Standard range

Order Code:

05-1794

Brand: Mean Well MPN: SMU02L-05

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (9)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£5.61

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The Mean Well SMU02L-05 is a DC/DC converter module with a single output offering 2W power and a current rating of 400 mA. Key features include efficient power conversion suitable for applications requiring stable voltage regulation. Typical applications include embedded systems, industrial equipment, and telecommunications devices.

Type	DC/DC converter (module)
Connection	Pins
Dim	(L x W x H) 11.6 x 7.5 x 10.14 mm
Efficiency (max.)	79%
Height	10.14mm
Input voltage (max.)	5.5V DC
Insulation voltage	1500V DC
Length	11.6mm
Max. output current	400mA
Min. input voltage	4.5V DC
Misc Attribute	SMU02L-05
No. of outputs	1
Operating temperature (max.)	+85°C
Operating temperature (min.)	-40°C
Output current (max.) - rounded	400mA
Output current (min.)	80mA
Output voltage (max.)	5V DC
Power	2W
PSU features	DC-to-DC converter
Weight	1.3g
Width	7.5mm
