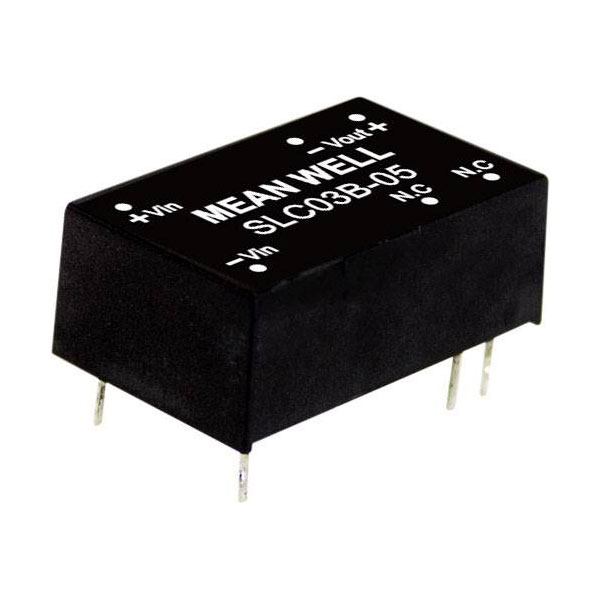

Mean Well SLC03C-05 SLC 03 dc/dc converter 3W 1 output -40 to +90°C

Mean Well
Standard range
Order Code:

05-1786

Brand: Mean Well MPN: SLC03C-05
Qty Unit Price (Ex VAT)
1+ £8.67
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Mean Well SLC03C-05 is a DC/DC converter module with a single output delivering 600 mA at 3 W. It is commonly used in applications requiring efficient voltage regulation from a specific source voltage. This compact converter is ideal for use in telecommunications, industrial automation, and data communication systems.
Type DC/DC converter (module)
Connection Pins
Dim (L x W x H) 22.1 x 13.8 x 8.55 mm
Efficiency (max.) 81%
Height 8.55mm
Input voltage (max.) 75V DC
Insulation voltage 1500V DC
Length 22.1mm
Max. output current 600mA
Min. input voltage 36V DC
Misc Attribute SLC03C-05
No. of outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 600mA
Output voltage (max.) 5V DC
Power 3W
PSU features DC-to-DC converter
Weight 4.5g
Width 13.8mm
