Mean Well SFTN01M-05 SFTN01 DC/DC converter 200mA 1W 1 output -40°C to 90°C

Mean Well
Order Code:

05-1713

Brand: Mean Well MPN: SFTN01M-05 EAN-13: 4021087041676
Qty Unit Price (Ex VAT)
2+ £3.15
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2 in stock, despatched in 4 working days

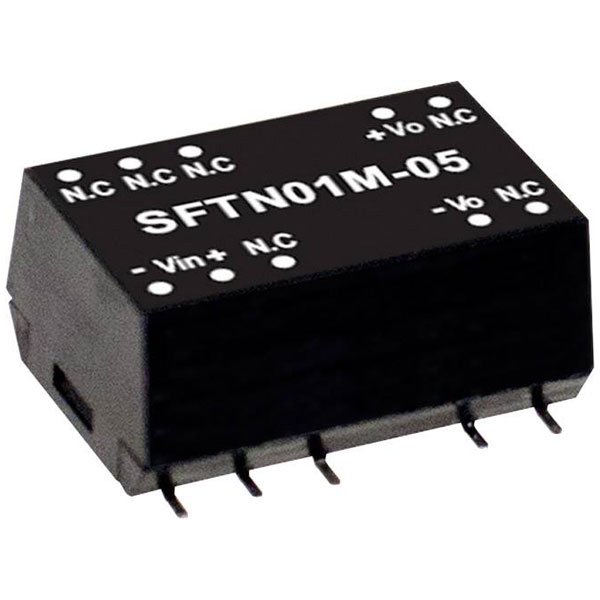

The Mean Well SFTN01M-05 is a DC/DC converter module that delivers a 1-watt output with a current rating of 200 mA. It features a single output and is typically used in applications requiring reliable voltage conversion. This converter is ideal for use in electronic devices where efficient power management is crucial.
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 75%
Height 7.1mm
Input voltage (max.) 13.2V DC
Insulation Voltage 3000V DC
Length 15.24mm
Max. output current 200mA
Min. input voltage 10.8V DC
Number of Outputs 1
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 200mA
Output current (min.) 20mA
Output voltage (max.) 5V DC
Power 1W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 10.9mm
