Mean Well RPT-60A SMPSU 5V DC 4.4A 46.5W 1 pc(s) Compact and efficient

Mean Well
Order Code:

05-1476

Brand: Mean Well MPN: RPT-60A EAN-13: 4021087048491
Qty Unit Price (Ex VAT)
1+ £23.73
5+ £23.14
10+ £22.54
25+ £21.97
50+ £20.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 17/12/2025

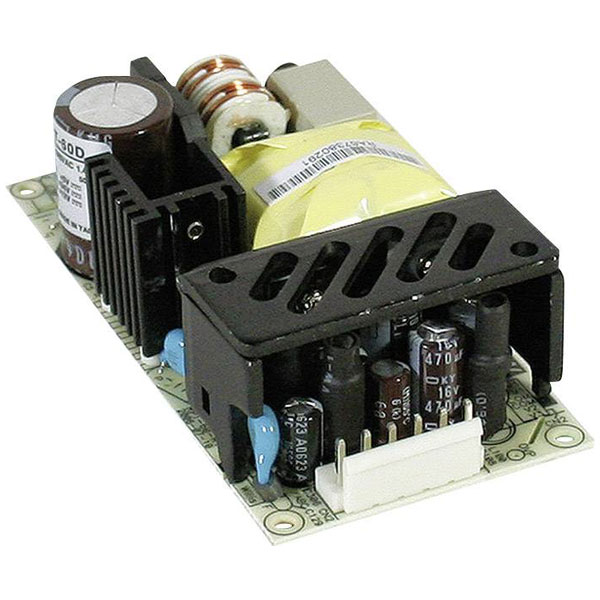

The Mean Well RPT-60A is a printed circuit board power supply unit with a 5 V DC output and a 4.4 A current capacity, delivering up to 46.5 W of power. This SMPSU with solder lugs is designed for easy integration on circuit boards, making it ideal for various electronic and industrial applications. Its reliable performance and compact PCB mount design make it a versatile choice for powering embedded systems and other digital devices.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 101.6 x 50.8 x 29 mm
Height 29mm
Length 101.6mm
Max. output current 4.4A
Max. temperature +65°C
Min. temperature -20°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 677800h
Number of Inputs 1
Number of Outputs 3
Output current (max.) - rounded 4.4A
Output current (min.) 0.5A
Output current 2 (max.) 2.2A
Output current 2 (min.) 0.1A
Output current 3 (max.) 0.55A
Output current 3 (min.) 0.1A
Output voltage (max.) 5V DC
Output voltage (min.) 5V DC
Output voltage 2 (max.) 12V DC
Output voltage 2 (min.) 12V DC
Output voltage 3 (max.) -5V DC
Output voltage 3 (min.) -5V DC
PFC No
Power 46.5W
Width 50.8mm
