Mean Well RPS-65-24 RPS-65 SMPSU 24V 2.98A 65W Medical-grade Power Supply

Mean Well
Order Code:

05-1475

Brand: Mean Well MPN: RPS-65-24 EAN-13: 4021087033756
Qty Unit Price (Ex VAT)
1+ £21.94
5+ £21.38
10+ £20.86
25+ £19.74
50+ £18.67
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 13/12/2025

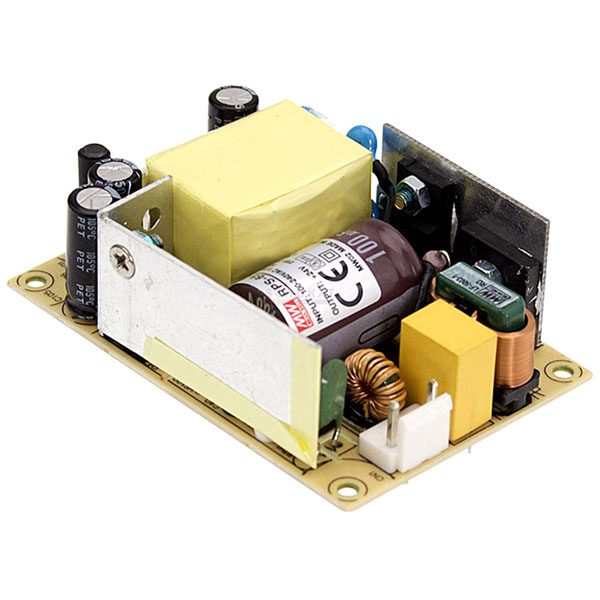

Manufactured by Mean Well, the RPS-65-24 is a 24 V DC switch mode power supply unit with a current rating of 2.98 A and a power output of 65 W. This printed circuit board PSU is equipped with solder lugs, making it suitable for PCB mounting applications. Typical uses include supplying power to industrial equipment or electronic projects requiring a stable power source.
Type SMPSU
Connection Pin strip for nylon crimp connectors
Dim (L x W x H) 76.2 x 50.8 x 24 mm
Height 24mm
Input voltage (max.) 264V AC
Length 76.2mm
Max. output current 2.98A
Max. temperature +70°C
Min. input voltage 80V AC
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 959100h
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 2.98A
Output voltage (max.) 24V DC
PFC No
Power 65W
PSU features Adjustable voltage output
Width 50.8mm
