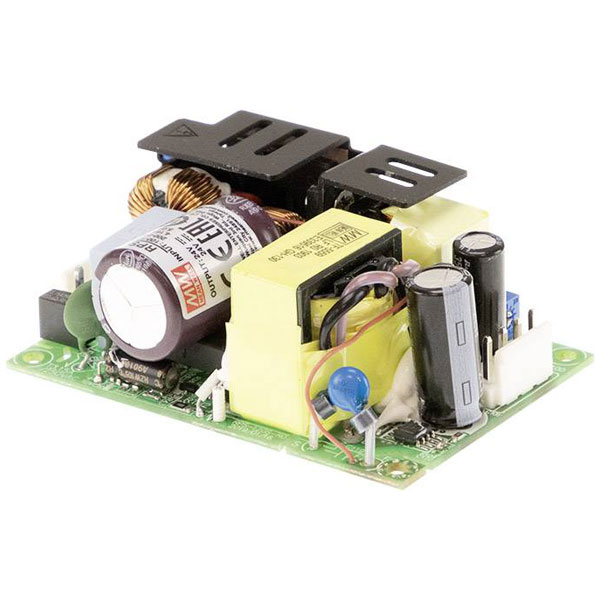

Mean Well RPS-120S-15 SMPSU 15V DC 7.6A 114W efficient power supply

The Mean Well RPS-120S-15 is a 15 V DC, 7.6 A, 114 W switch-mode power supply unit designed for PCB mounting. It features solder lugs for secure connections and can be used in various electronic circuits requiring reliable power delivery. Typical applications include industrial equipment, medical devices, and communication systems.

Type	SMPSU
Nominal value output current 1	7.6A
Number of Outputs	1
Power Rating	114W
Depth	76.2mm
Dimensions (L x W x H)	76.2 x 50.8 x 28mm
Height	28mm
Max. output current 1	7.6A
Maximum Temperature	+85°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	468000h
Nominal value output voltage 1 [DC]	15V
Number of Inputs	1
PFC	Yes
Type of electric connection	Pin strip for nylon crimp connectors
Weight	130g
Width	50.8mm
