Mean Well Open & DIN Power Supply Units SMPSU 608270

Mean Well Brand: Mean Well
The Mean Well RSP-1600 series comprises highly efficient switched-mode power supply units, featuring varying voltage outputs and power capacities to suit diverse applications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Power Rating Misc Attribute 2 Misc Attribute 3 Number of Outputs Input Voltage Connection Dimensions Height Length Max. temperature Min. input voltage Min. temperature Operating temperature (max.) Operating temperature (min.) PFC PSU features Type Width

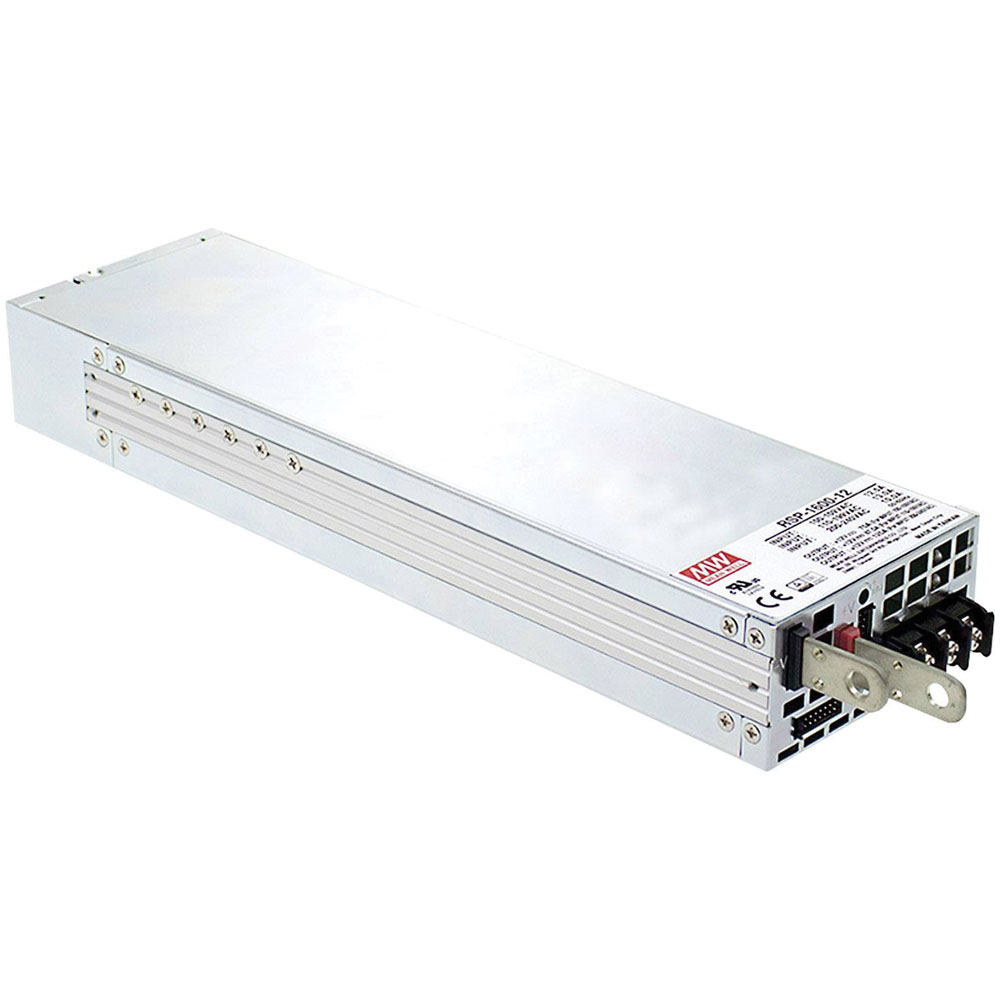

Mean Well RSP-1600-12 RxP-1600 power supply 12V 125A 1500W 93.5% efficient
Mean Well RSP-1600-12 RxP-1600 power supply 12V 125A 1500W 93.5% efficient
Standard range
Order code: 05-1581
MPN: RSP-1600-12

Available to back orderBack-order availability date - 03/01/2026
1+ £440.72
5+ £427.49
10+ £414.28
25+ £401.06
50+ £387.84
Price per unit Ex VAT 		12V DC 125A 1500W closed Pulsed 1 264V AC Screw terminal (L x W x H) 300 x 85 x 41 mm 41mm 300mm 70°C 90V AC -30°C 70°C -30°C Yes Adjustable voltage output SMPSU 85mm
Mean Well RSP-1600-24 RxP-1600 series SMPSU 24V 67A 1608W 93.5% efficient
Mean Well RSP-1600-24 RxP-1600 series SMPSU 24V 67A 1608W 93.5% efficient
Standard range
Order code: 05-1582
MPN: RSP-1600-24

Available to back orderBack-order availability date - 03/01/2026
1+ £409.18
Price per unit Ex VAT 		24V DC 67A 1608W Pulsed closed 1 264V AC Screw terminal (L x W x H) 300 x 85 x 41 mm 41mm 300mm 70°C 90V AC -30°C 70°C -30°C Yes Adjustable voltage output SMPSU 85mm
Mean Well RSP-1600-48 SMPSU 48V 33.5A 1608W 25W/in³ 93.5% efficient
Mean Well RSP-1600-48 SMPSU 48V 33.5A 1608W 25W/in³ 93.5% efficient
Standard range
Order code: 05-1583
MPN: RSP-1600-48

Available to back orderBack-order availability date - 03/01/2026
1+ £389.79
Price per unit Ex VAT 		48V DC 33.5A 1608W Pulsed closed 1 264V AC Screw terminal (L x W x H) 300 x 85 x 41 mm 41mm 300mm 70°C 90V AC -30°C 70°C -30°C Yes Adjustable voltage output SMPSU 85mm
