Mean Well RSP-1600-48 SMPSU 48V 33.5A 1608W 25W/in³ 93.5% efficient

Mean Well
Order Code:

05-1583

Brand: Mean Well MPN: RSP-1600-48 EAN-13: 4021087033664
Qty Unit Price (Ex VAT)
1+ £389.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/12/2025

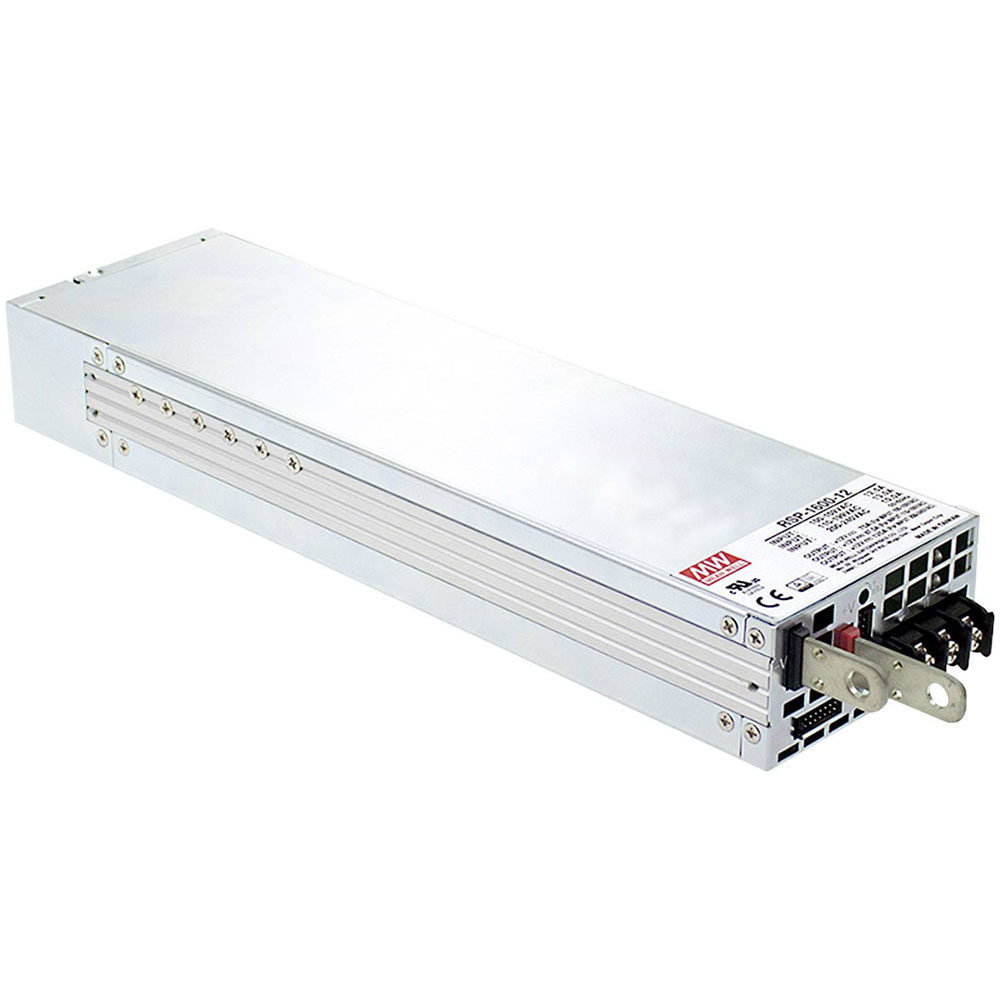

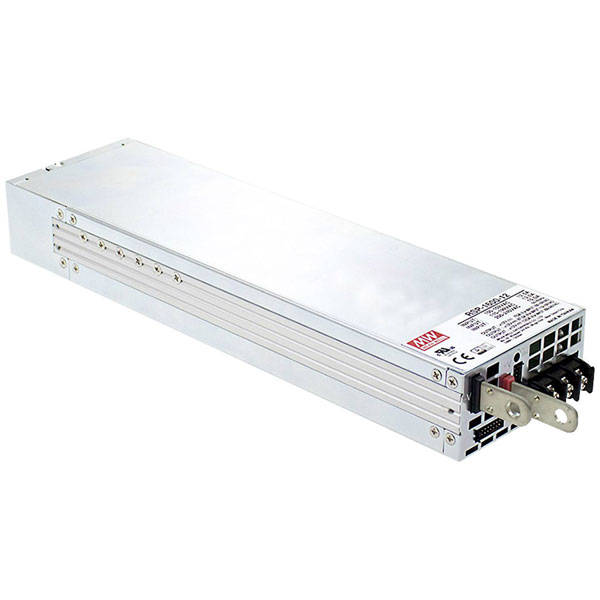

The Mean Well RSP-1600-48 is a switch mode power supply unit (SMPSU) providing 48 V DC and 33.5 A, with a total power output of 1608 W. This PSU features a PCB mount with solder lugs and screw terminal connections. It is suitable for industrial applications requiring reliable and efficient power delivery.
Connection Screw terminal
Dim (L x W x H) 300 x 85 x 41 mm
Height 41mm
Input voltage (max.) 264V AC
Length 300mm
Max. output current 33.5A
Max. temperature 70°C
Min. input voltage 90V AC
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 33.5A
Output current (min.) 0A
Output voltage (max.) 48V DC
PFC Yes
Power 1608W
PSU features Adjustable voltage output
Type SMPSU
Width 85mm
