Mean Well RSP-1600-24 RxP-1600 series SMPSU 24V 67A 1608W 93.5% efficient

Mean Well
Order Code:

05-1582

Brand: Mean Well MPN: RSP-1600-24 EAN-13: 4021087033695
Qty Unit Price (Ex VAT)
1+ £409.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 14/12/2025

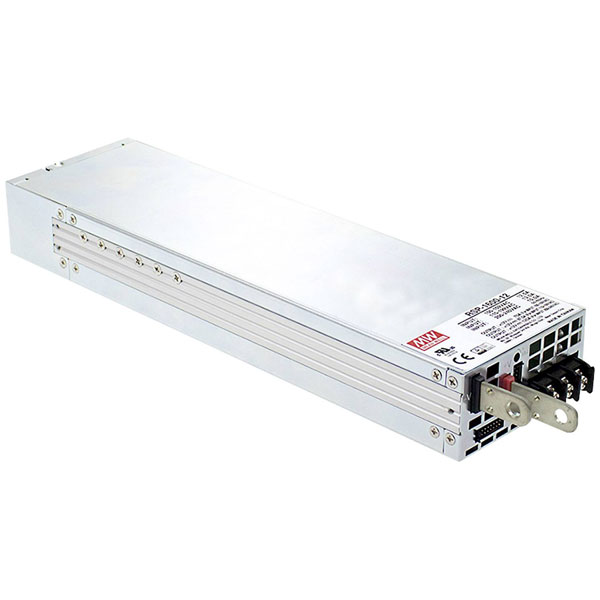

The Mean Well RSP-1600-24 is a Switch Mode Power Supply Unit that delivers 24 V DC at 67 A, totalling 1608 W. It features a PCB mount with solder lugs and screw terminals for secure connections. This power supply unit is typically used in industrial applications requiring high power delivery and reliability.
Connection Screw terminal
Dim (L x W x H) 300 x 85 x 41 mm
Height 41mm
Input voltage (max.) 264V AC
Length 300mm
Max. output current 67A
Max. temperature 70°C
Min. input voltage 90V AC
Min. temperature -30°C
Misc Attribute 2 Pulsed
Misc Attribute 3 closed
Number of Outputs 1
Operating temperature (max.) 70°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 67A
Output current (min.) 0A
Output voltage (max.) 24V DC
PFC Yes
Power 1608W
PSU features Adjustable voltage output
Type SMPSU
Width 85mm
