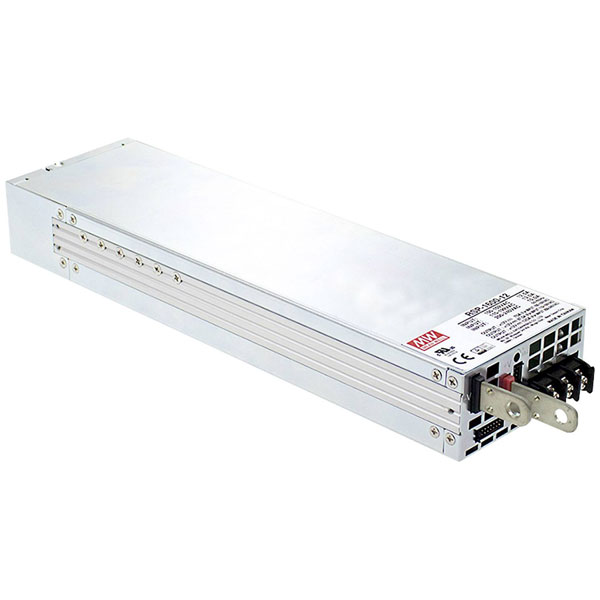

Mean Well RSP-1600-12 RxP-1600 power supply 12V 125A 1500W 93.5% efficient

The Mean Well RSP-1600-12 is a switch mode power supply unit (SMPSU) that delivers 12 V DC at 125 A, with a maximum power output of 1500 W. This PCB-mounted PSU features solder lugs and screw terminals for secure connections. It is commonly used in industrial and commercial applications requiring reliable high-power delivery.

Output Voltage	12V DC
Output Current	125A
Power Rating	1500W
Number of Outputs	1
Input Voltage	264V AC
Connection	Screw terminal
Dimensions	(L x W x H) 300 x 85 x 41 mm
Height	41mm
Length	300mm
Maximum Operating Temperature	70°C
Maximum Temperature	70°C
Min. temperature	-30°C
Minimum Input Volage	90V AC
Misc Attribute 2	closed
Misc Attribute 3	Pulsed
Operating temperature (min.)	-30°C
PFC	Yes
PSU features	Adjustable voltage output
Type	SMPSU
Weight	2.100g
Width	85mm
