Mean Well Open & DIN Power Supply Units SMPSU 608261

Mean Well Brand: Mean Well
The series comprises compact single-unit switch mode power supply units manufactured by Mean Well, offering various output voltages and power capacities suitable for diverse applications.
Description Image Product Buy Pricing (Ex VAT) Dim Height Length Max. output current Output current (max.) - rounded Output voltage (max.) Power Width Type Connection Max. temperature Min. temperature Misc Attribute 2 Misc Attribute 3 MTBF Number of Inputs Number of Outputs PFC

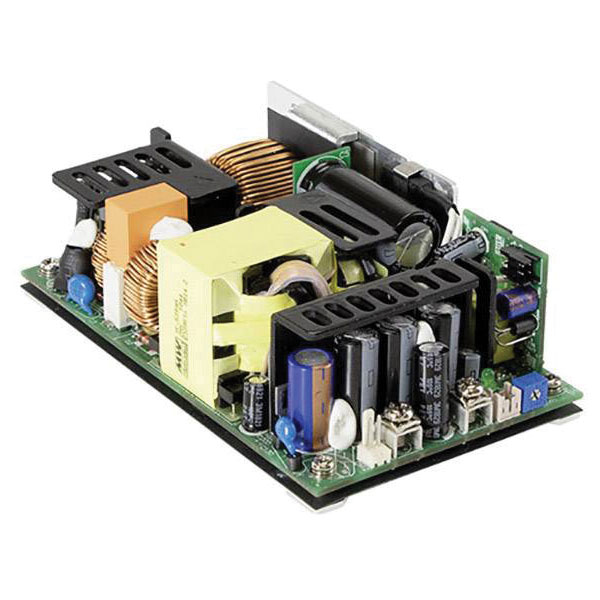

Mean Well RPS-500-24 SMPSU 24V 13.4A 321.6W compact single unit
Mean Well RPS-500-24 SMPSU 24V 13.4A 321.6W compact single unit
Standard range
Order code: 05-1470
MPN: RPS-500-24

Available to back orderBack-order availability date - 12/12/2025
1+ £97.99
5+ £95.04
10+ £92.11
25+ £89.17
50+ £86.22
Price per unit Ex VAT 		(L x W x H) 127 x 76.2 x 40 mm 40mm 127mm 13.4A 13.4A 24V DC 321.6W 76.2mm SMPSU Pin strip for nylon crimp connectors +70°C -30°C Pulsed open 194100h 1 1 Yes
Mean Well RPS-500-27 Series SMPSU 27V 11.9A 321.3W
Mean Well RPS-500-27 Series SMPSU 27V 11.9A 321.3W
Standard range
Order code: 05-1471
MPN: RPS-500-27

Available to back orderBack-order availability date - 12/12/2025
1+ £99.95
5+ £96.95
10+ £93.94
25+ £90.95
50+ £87.95
Price per unit Ex VAT 		(L x W x H) 127 x 76.2 x 40 mm 40mm 127mm 11.9A 11.9A 27V DC 321.3W 76.2mm SMPSU Pin strip for nylon crimp connectors +70°C -30°C Pulsed open 194100h 1 1 Yes
Mean Well RPS-500-48-C SMPSU 48V DC 6.5A 312W Power Supply Unit
Mean Well RPS-500-48-C SMPSU 48V DC 6.5A 312W Power Supply Unit
Standard range
Order code: 05-1472
MPN: RPS-500-48-C

Available to back orderBack-order availability date - 12/12/2025
1+ £114.45
5+ £108.16
10+ £103.00
25+ £97.28
50+ £93.73
Price per unit Ex VAT 		(L x W x H) 130 x 86 x 43 mm 43mm 130mm 6.5A 6.5A 48V DC 312W 86mm SMPSU Pin strip for nylon crimp connectors +70°C -30°C Pulsed open 194100h 1 1 Yes
