Mean Well RPS-500-48-C SMPSU 48V DC 6.5A 312W Power Supply Unit

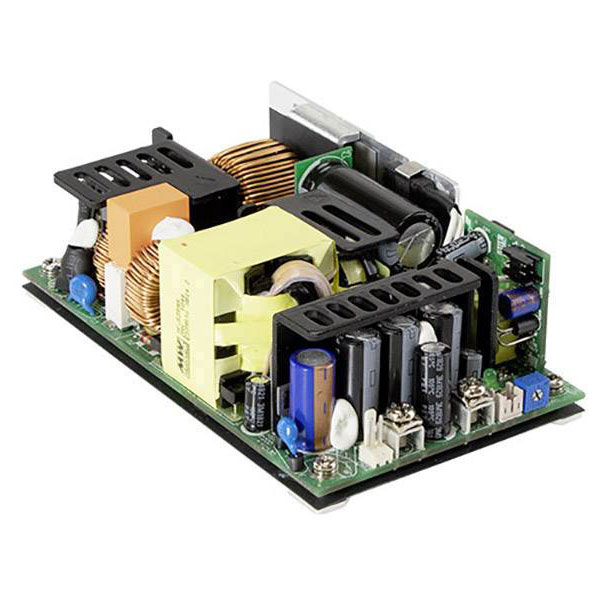

Mean Well manufactures the RPS-500-48-C, a switch mode power supply unit (SMPSU) with a voltage output of 48 V DC and a current rating of 6.5 A, delivering 312 W of power. This PCB-mounted power supply includes solder lugs for secure connection, making it suitable for circuit board equipping. Typical applications include industrial equipment and electronic devices requiring reliable and efficient power conversion.

Type	SMPSU
Nominal value output current 1	6.5A
Number of Outputs	1
Power Rating	312W
1st secondary output voltage	48V
2nd secondary output voltage	48V
3rd secondary output voltage	48V
Depth	130mm
Dimensions (L x W x H)	130 x 86 x 43mm
Height	43mm
Max. output current 1	6.5A
Maximum Temperature	+70°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	194100h
Nominal value output voltage 1 [DC]	48V
Nominal value output voltage 2	48V
Nominal value output voltage 3	48V
Number of Inputs	1
Output voltage stabilized	48V
PFC	Yes
Rated supply voltage AC 50 Hz	48V
Rated supply voltage AC 60 Hz	48V
Rated supply voltage DC	48V
Type of electric connection	Pin strip for nylon crimp connectors
Voltage type (supply voltage)	48V
Weight	540g
Width	86mm
