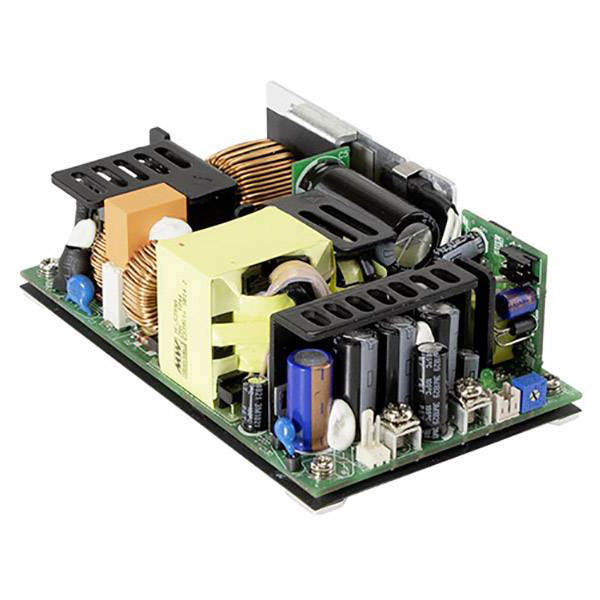

Mean Well RPS-500-27 Series SMPSU 27V 11.9A 321.3W

The Mean Well RPS-500-27 is a printed circuit board (PCB) mount switched-mode power supply unit (SMPSU) providing 27 V DC at 11.9 A, delivering a total output of 321.3 W. It is equipped with solder lugs and pin strip connectors, making it suitable for PCB equipping and various electronic applications. This power supply is typically used in industrial equipment, automation systems, and other professional electronic devices requiring reliable power delivery.

Type	SMPSU
Nominal value output current 1	11.9A
Number of Outputs	1
Power Rating	321.3W
Depth	127mm
Dimensions (L x W x H)	127 x 76.2 x 40mm
Height	40mm
Max. output current 1	11.9A
Maximum Temperature	+70°C
Min. temperature	-30°C
Misc Attribute 2	Pulsed
Misc Attribute 3	open
MTBF	194100h
Nominal value output voltage 1 [DC]	27V
Number of Inputs	1
PFC	Yes
Type of electric connection	Pin strip for nylon crimp connectors
Weight	460g
Width	76.2mm
